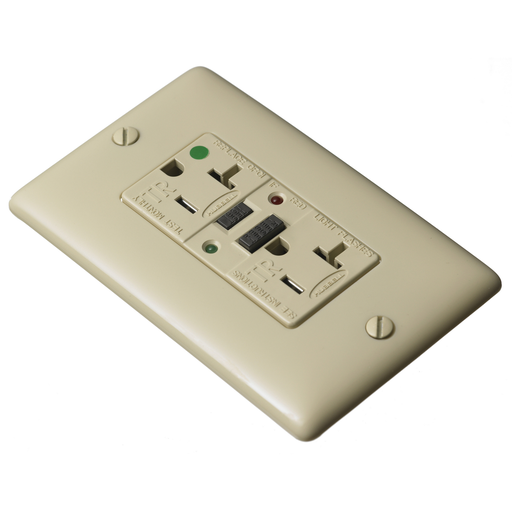

Hubbell GFR8300SGI20A 125V IND HG TAMPER ST GFCI, IVORY

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # GFR8300SGI | Codale Part # 3299336
$155.89/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Power Protection Products, Receptacles, GFCI, Safety Grade Commercial Hospital Grade, Self Test, LED Indicator, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Ivory

Technical Information

Amperage
20 Amp
Applications
Hospital Grade
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
20 Amp
Frequency
60 Hz
Grade
Hospital
Grounding
Self
Material
Thermoplastic
Mounting Type
Screw, Recessed/Flush
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-30 To 150 degrees F
Size
Standard Sized
Standard
CEC,NEC®,UL
Style
Standard
Tc Connection
Back and Side Wired Terminal Screws
Type
Decorator, Tamper-Resistant
Voltage
125 Volt
Wattage
2500 Watt
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade GFCI Receptacles

General Product Info

12-Digit UPC
783585441061
Color
Ivory
Environmental Conditions
Indoor Dry Unless Protected by Additional Means, Weather-Resistant
Product UPC
78358544106
Weight
0.35 lb

Dimensions

Height
2.1 Inch
Length
4.8 Inch
Width
3.0 in

Certifications and Compliance

Country of Origin
USA
Features
  • 10kA Short Circuit Current Rating
  • Limits improper access to energized contacts
  • Power indication
  • Ground fault indicator
  • No power at face if reverse wired
  • Self-Testing, Tamper and Weather Resistant, Self Grounding
