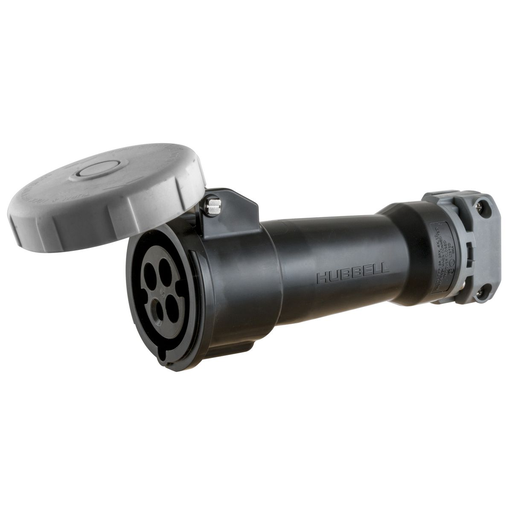

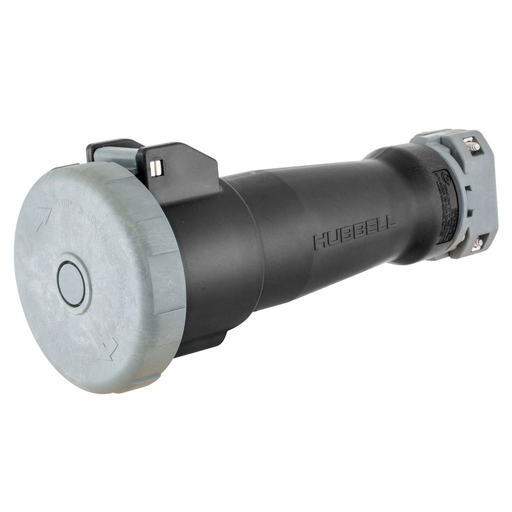

Hubbell HBL430C5W PS, IEC, C, 3P4W, 30A 3P 600V, IP67

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL430C5W | Codale Part # 329966
$600.39/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 30A 3-Phase Delta 600V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Black, Watertight

Technical Information

Amperage
30 Amp
Applications
High Ampacity Connections
Conductor Size
12-8 AWG
Current
30 Amp
Material
Plastic
Mounting Type
Cord
Number of Conductors
4-Wire Grounding
Number of Poles
3 Pole
Number of Wires
4-Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,File E146033,File LR280C,IEC 60309-1 IEC 60309-2,UL
Style
Standard Service
Tc Connection
Pressure Screw Terminal
Temperature Rating
-25 to 75 degrees C with Impact, -40 to 75 degrees C without Impact
Type
Standard, IEC, Straight Angled
Voltage
600 Volt
Wire Count
4

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve

General Product Info

12-Digit UPC
783585404509
Color
Black
Environmental Conditions
Watertight
Product Series
HBL Heavy Duty
Product UPC
78358540450
Weight
1.85 lb

Dimensions

Height
4.12 Inch
Length
9.81 Inch
Width
5.1 in

Certifications and Compliance

Certifications
CSA Certified File LR280C For Plugs,CSA Standard C22.2 No. 182.1,Connectors And Inlets,E146033 Plugs And Connectors,File E146032 Receptacles And Inlets,IEC,LR285C For Receptacles,UL Classified To IEC60309-1,UL Listed,UL Listed,UL Standard 498 CSA Certified To CSA Spec. C22.2 No. 182.2 UL Classified To IEC 309-1 And IEC 309-2.,UL Standard UL1682 & UL1686C2
Country of Origin
Puerto Rico
Features
  • Insulated Non-Metallic housing
  • Color coded housings by voltage for easy identification
  • Corrosion-resistant self-closing gasketed cover
  • Watertight
