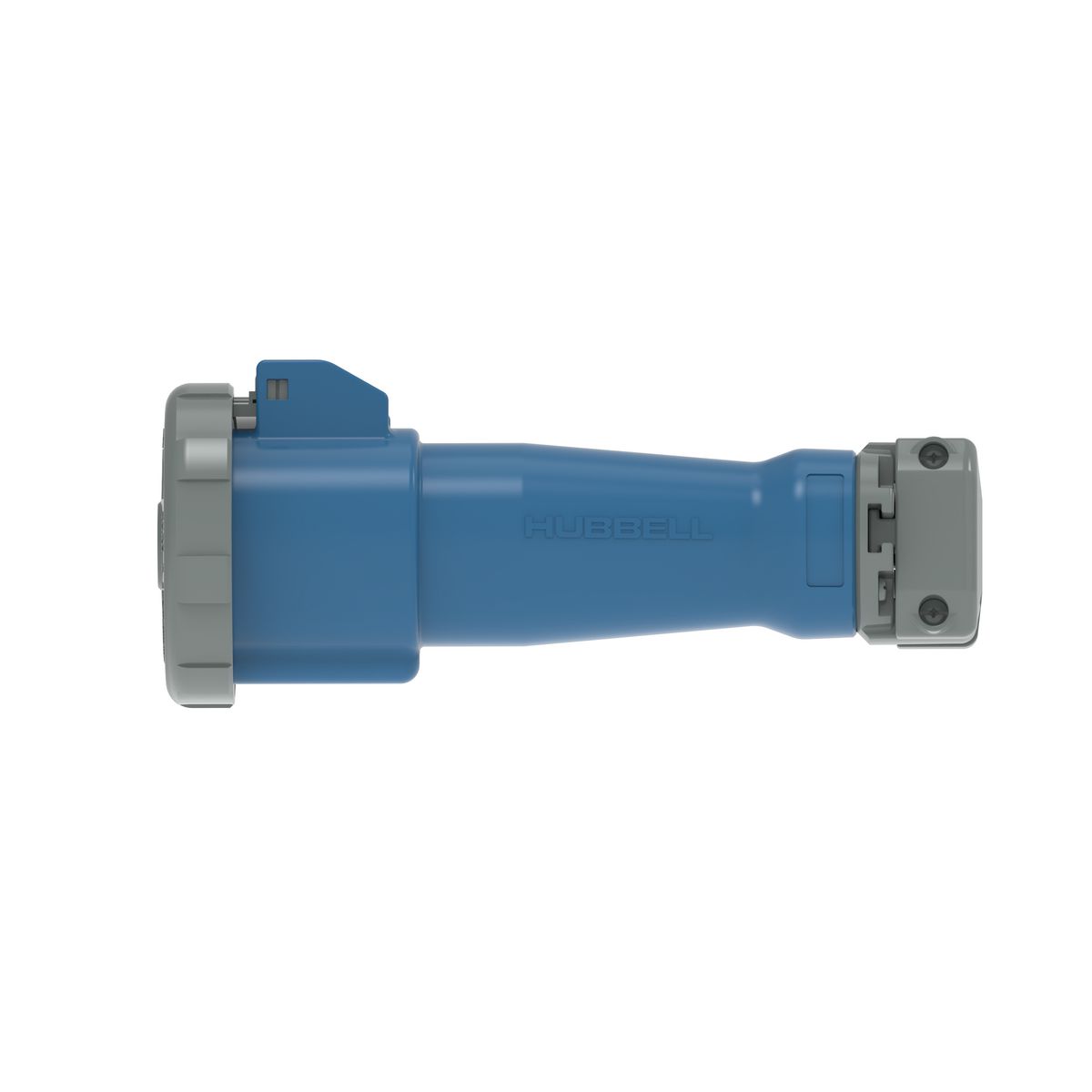

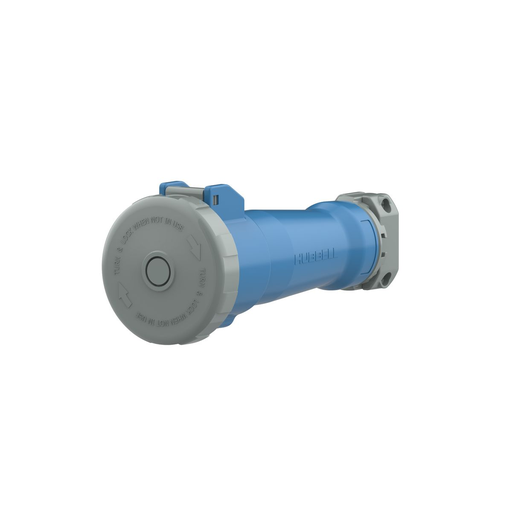

Hubbell HBL460C9W 3ph 250V 3P4W Watertight Connector, Pin & Sleeve

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL460C9W | Codale Part # 329996
$975.45/ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female Connector Body, 60A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Blue, Watertight

Technical Information

Amperage
60 Amp
Applications
High Ampacity Connections
Conductor Size
8-2 AWG
Connection Type
Pressure Screw Terminal
Current
60 Amp
Material
Composite
Number of Conductors
4
Number of Poles
3-3 Pole
Number of Ports
3
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,File E146033,File LR280C,IEC 60309-1 IEC 60309-2,UL
Style
Standard Service
Tc Connection
Pressure Screw Terminal
Temperature Rating
-25 to 75 degrees C with Impact, -40 to 75 degrees C without Impact
Type
Standard, Insulated, Watertight, Straight Angle
Voltage
250 Volt
Wire Count
4

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve

General Product Info

12-Digit UPC
783585404837
Color
Blue
Environmental Conditions
Watertight
Product Series
HBL Heavy Duty
Product UPC
78358540483
Weight
2.95 lb

Dimensions

Height
5 Inch
Length
11-3/4 Inch
Width
5.7 in

Certifications and Compliance

Certifications
CSA Certified File LR280C For Plugs,CSA Standard C22.2 No. 182.1,Connectors And Inlets,E146033 Plugs And Connectors,File E146032 Receptacles And Inlets,IEC,LR285C For Receptacles,UL Classified To IEC60309-1,UL Listed,UL Listed,UL Standard 498 CSA Certified To CSA Spec. C22.2 No. 182.2 UL Classified To IEC 309-1 And IEC 309-2.,UL Standard UL1682 & UL1686C2
Country of Origin
USA
Features

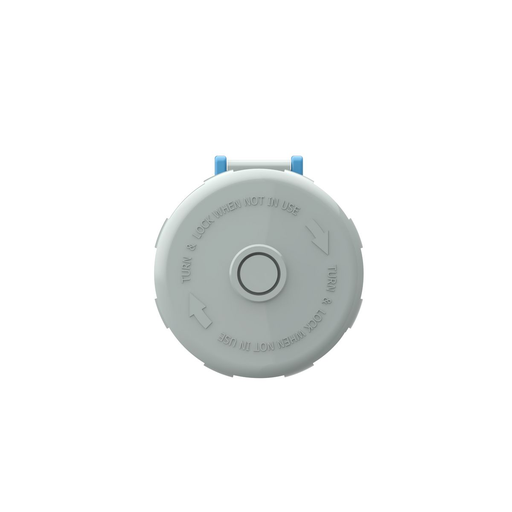

  • Self-closing gasketed cover
  • Color coded housings for easy identification
  • Super tough insulated non-metallic housing
  • Watertight
