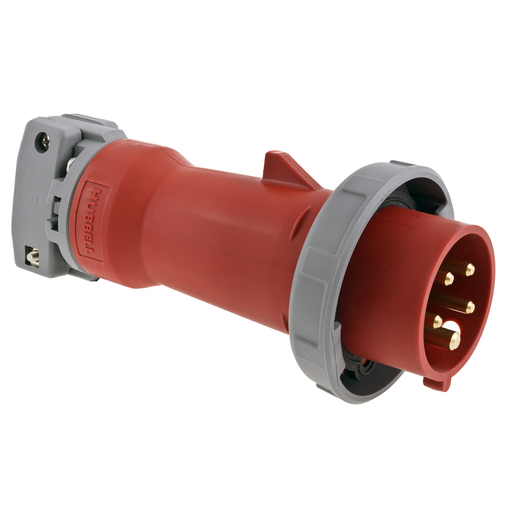

Hubbell HBL5125P6W 125 Amp 380 to 415 Volt 4-Pole 5-Wire Red IEC Pin and Sleeve Plug

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5125P6W | Codale Part # 330028
$794.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Plug, 125V 380/415V, 4-Pole 5-Wire Grounding, Terminal Screws, Red, Watertight

Technical Information

Amperage
125 Amp
Applications
High Ampacity Connections
Conductor Size
2-1/0 AWG
Cord Type
Portable
Current
125 Amp
Material
Nylon
Mounting Type
Cord
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,File E146033,File LR280C,IEC Standards 60309-1,UL
Style
Standard Service
Tc Connection
Pressure Terminal Screws
Type
Male, Straight
Voltage
240/415 Volt
Wire Count
5
Wire Size
2-0 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585405155
Color
Red
Environmental Conditions
Watertight
Product Series
HBL Heavy Duty
Product UPC
78358540515
Weight
4.2 lb

Dimensions

Height
5-1/4 Inch
Length
14 Inch
Width
6.250 in

Certifications and Compliance

Certifications
CSA Certified,CSA Certified.,UL Listed,UL Listed
Country of Origin
USA
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstand 3000V AC
  • Electrical - Max. Working Voltage - 600V RMS
  • Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17
  • Environmental - Ingress Protection - IP67 Suitability
  • Environmental - Moisture Resistance - Watertight per IEC 60309-1
  • Environmental - Operating Temperatures - Maximum Continuous 75°C
  • Minimum - 40°C w/o impact
  • Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682
  • Mechanical - Product Identification - Ratings are a permanent part of the device housing
  • Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Voltage Rating
  • 220/380 V
  • 240/415 V
Features
  • Solid one-piece pins for reliable electrical contact
  • Gasketed sealing ring provides watertight seal
  • Water-Tight
  • Heavy duty external cord grips for maximum cord retention
Industry Standard(s)
  • CSA Certified File LR280C
  • UL Classified to IEC Standards 60309-1
  • UL Listed, File E146033
