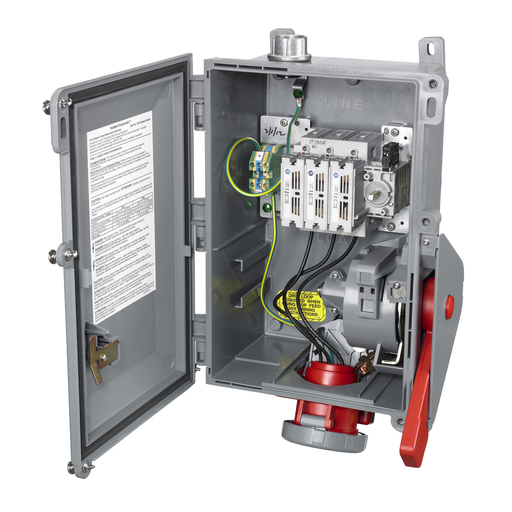

Hubbell HBL530MIF7W Pin & Sleeve IEC Fused Circuit-Lock® Mechanical Interlock, 30A 4P5W, 3ØY 277/480V, IP66, NEMA 4X, 12

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL530MIF7W | Codale Part # 330042
$3,991.25/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Fused Mechanically Interlocked Receptacle, 30A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding

Technical Information

Amperage
30 Amp
Applications
High Ampacity Watertight
Conductor Size
10 AWG
Current
30 Amp
Material
Thermoplastic
Number of Phases
3 Phase
Number of Poles
4-4 Pole
Number of Wires
5,5
Operating Temperature
-40 degrees C
Size
Standard Sized Product
Standard
CSA,Canada,For US,UL
Style
Standard Service
Tc Connection
Terminal Screws
Type
Mechanically Interlocked Single
Voltage
277/480 Volt
Wattage
14400 Watt
Wire Count
5
Wire Size
10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585406114
Color
Red
Environmental Conditions
Watertight
Product UPC
78358540611
Weight
16.6 lb

Dimensions

Height
9.3 Inch
Length
20 Inch
Width
12.600 in

Certifications and Compliance

Certifications
CSA Certified,CSA Certified.,UL Listed,UL Listed
Country of Origin
USA
Features
  • Replaceable spring-loaded receptacle liftcover with gasket
  • Removable door for ease of wiring and installation
  • Plug-Check™ mechanism to detect the presence of plug
  • Fused
