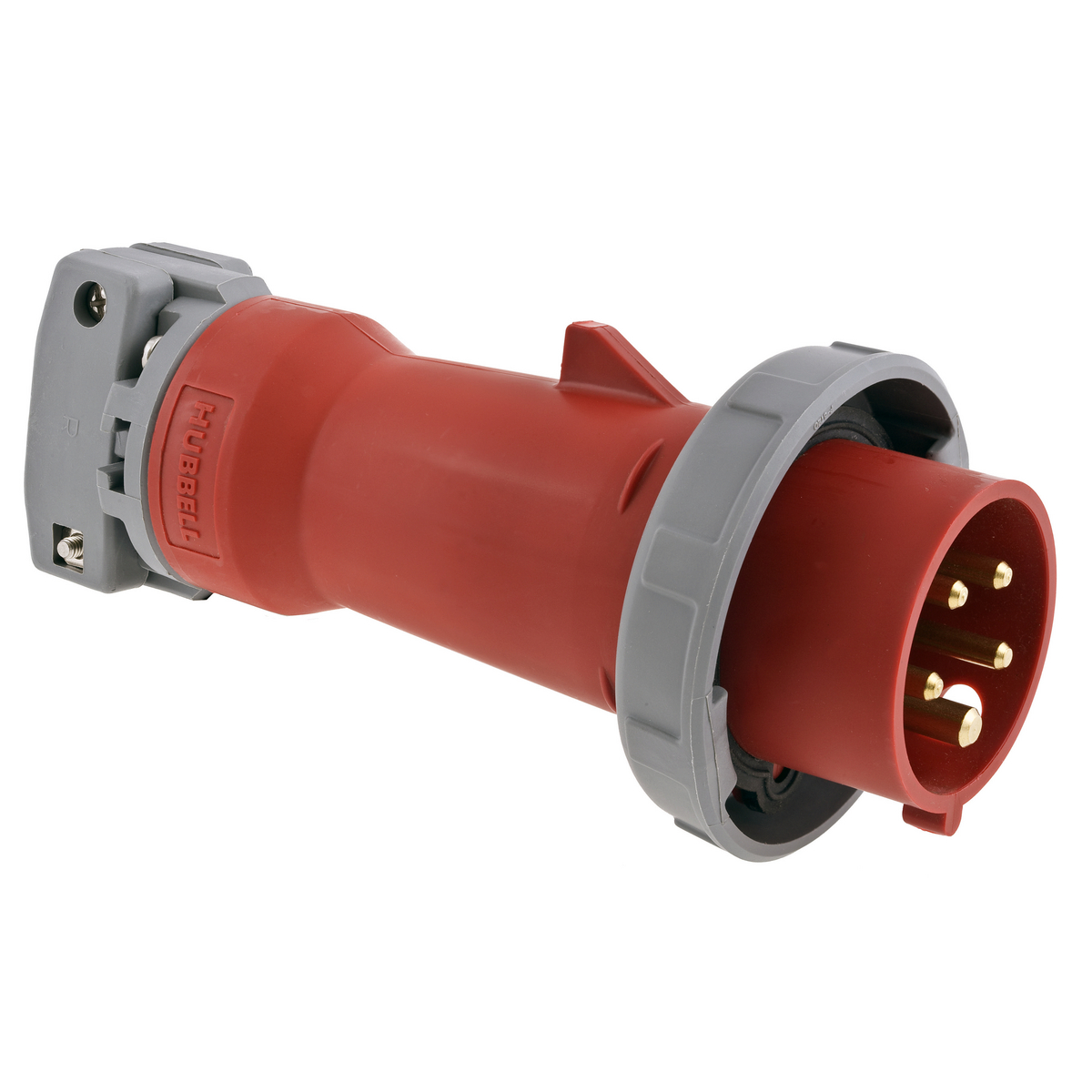

Hubbell HBL532P6W PS, IEC, Plug, 4P5W, 32A 220-415V, w/T

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL532P6W | Codale Part # 330108
$457.88/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Plug, 32A 220-415V, 4-Pole 5-Wire Grounding, Terminal Screws, Red, Watertight

Technical Information

Amperage
32 Amp
Applications
High Ampacity Connections
Conductor Size
10-8 AWG
Cord Type
Portable
Current
32 Amp
Grounding
Grounding
Material
Composite
Mounting Type
Cord
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,File E146032,File LR280C,IEC 60309-1 IEC 60309-2,UL
Style
Standard Service
Tc Connection
Pressure Terminal Screws
Type
Male, Straight
Voltage
240/415 Volt
Wire Count
5
Wire Size
10-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585405575
Color
Red
Environmental Conditions
Watertight
Product Series
HBL Heavy Duty
Product UPC
78358540557
Weight
1.7 lb

Dimensions

Height
4-1/4 Inch
Length
9 Inch
Width
4.300 in

Certifications and Compliance

Certifications
CSA Certified,CSA Certified.,UL Listed,UL Listed
Country of Origin
Puerto Rico
Features
  • Solid one-piece pins machined from solid brass
  • Gasketed sealing ring provides watertight seal
  • Raised collar surrounds each phase pin
  • Watertight
