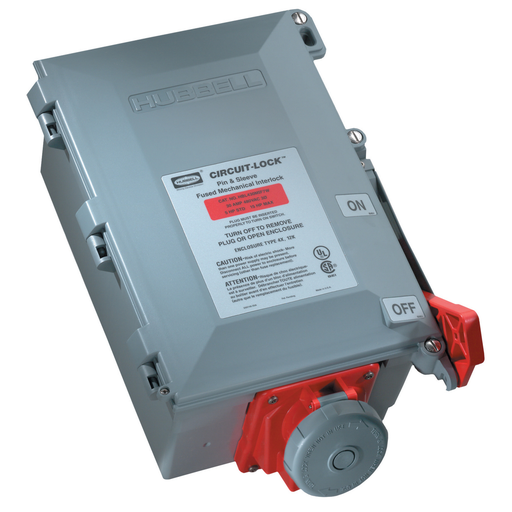

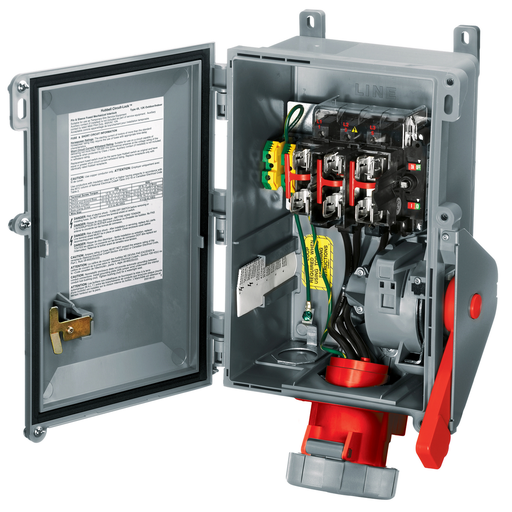

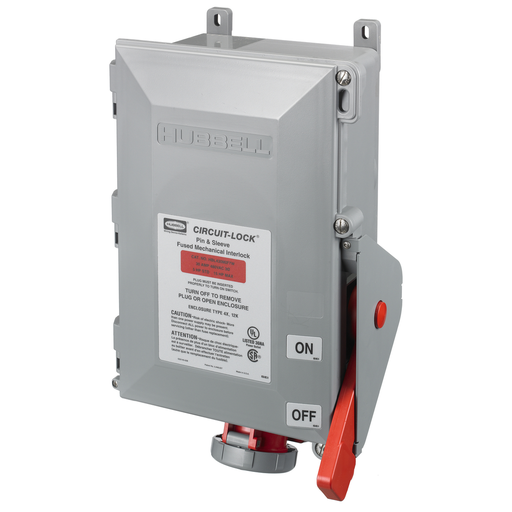

Hubbell HBL430MIF7W Pin & Sleeve IEC Fused Circuit-Lock® Mechanical Interlock, 30A 3P4W, 3Ø 480V, IP66, NEMA 4X, 12

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL430MIF7W | Codale Part # 330178
$3,931.17/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Fused Mechanically Interlocked Receptacle, 30A 3-Phase Delta 480 V AC, 3-Pole 4-Wire Grounding

Technical Information

Amperage
30 Amp
Applications
High Ampacity Watertight Connections
Conductor Size
12-8 AWG
Current
30 Amp
Material
Thermoplastic
Mounting Type
Screw
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,Canada,For US,UL
Style
Standard Service
Tc Connection
Pressure Plate
Type
Watertight, Fused
Voltage
480 Volt
Wattage
14400 Watt
Wire Count
4
Wire Size
12-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585405940
Color
Red
Environmental Conditions
Watertight
Product Series
Fused Interlocks
Product UPC
78358540594
Weight
16.6 lb

Dimensions

Height
9.3 Inch
Length
19.6 Inch
Width
12.4 in

Certifications and Compliance

Certifications
CSA Certified,CSA Certified.,UL Listed,UL Listed
Country of Origin
Poland
Features
  • Replaceable spring-loaded receptacle liftcover with gasket
  • Removable door for ease of wiring and installation
  • Plug-Check™ mechanism to detect the presence of plug
  • Watertight
