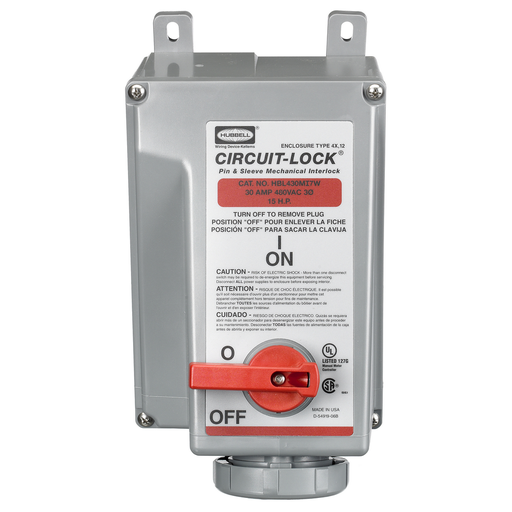

Hubbell HBL430MI7W Pin & Sleeve IEC Unfused Circuit-Lock® Mechanical Interlock, 30A 3P4W, 3Ø 480V, IP67, NEMA 4X, 12

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL430MI7W | Codale Part # 330184
$2,201.63/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female Mechanically Interlocked Receptacle, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Terminal Screws

Technical Information

Amperage
30 Amp
Applications
High Ampacity Watertight Connections
Conductor Size
12-8 AWG
Current
30 Amp
Grounding
Grounding
Material
Thermoplastic
Mounting Type
Screw
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,E2186,UL
Style
Standard Service
Tc Connection
Pressure Screw Terminals
Type
Mechanically Interlocked, Single
Voltage
480 Volt
Wattage
14400 Watt
Wire Count
4
Wire Size
12-8 in

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585405971
Color
Red
Environmental Conditions
Watertight
Product Series
Unfused Circuit,Lock
Product UPC
78358540597
Weight
6.2 lb

Dimensions

Height
7.2 Inch
Length
12.6 Inch
Width
7.9 in

Certifications and Compliance

Certifications
CSA Certified,CSA Certified.,UL Listed,UL Listed
Country of Origin
USA
Features
  • Large gears enclosed in a gear box
  • Lockable handle to meet OSHA Lockout/Tagout regulations
  • Pre-wired IEC Pin and Sleeve receptacle
  • Watertight
