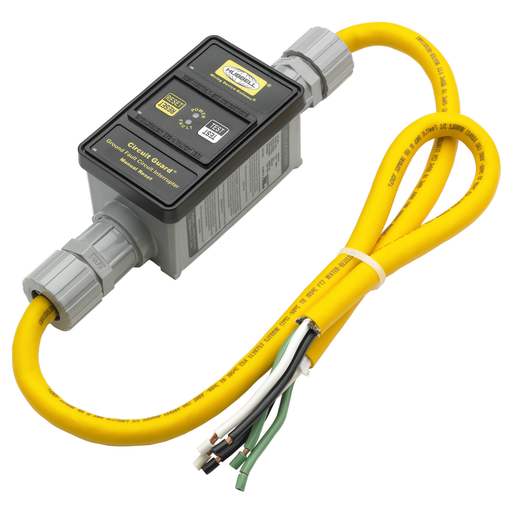

Hubbell GFP5305 PORT GFCI, 30A 3PH 250V, MAN, 6'

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # GFP5305 | Codale Part # 3302238
$1,291.62/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Power Protection Products, GFCI High Amperage Portables, Industrial/Commercial, Manual Set, 30A 3-Phase 250V AC, 6' Cord Length, 4-6 mA Trip Level, Black.

Technical Information

Amperage
30 Amp
Applications
Line Cord Only No Devices
Conductor Material
Copper
Conductor Size
10 AWG
Conductor Type
Copper
Cord Length
6 ft
Current
30 Amp
Frequency
60 Hz
Insulation Material
Elastomer
Number of Conductors
4
Operating Temperature
-30 To 150 degrees F
Standard
UL
Style
Manual Set
Temperature Rating
-34 to 65 degrees C
Type
Industrial Grade, Manual, 3-Phase
Voltage
250 Volt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Portable 30A GFCI Line Cords

General Product Info

12-Digit UPC
783585521268
Color
Black/Yellow
Construction
Fabricated
Jacket Material
PVC
Product Series
Extra Heavy Duty
Product UPC
78358552126
Weight
4.5 lb

Dimensions

Height
4.6 Inch
Length
2 Foot
Outside Diameter
0.335 in
Width
9.100 in

Certifications and Compliance

Country of Origin
USA
Features
  • Electromagnetic Latching Mechanism
  • Trips if ground and neutral touch at load side
  • Red blinking light plus optional audible alarm
  • Open neutral protection Trips upon loss of neutral
  • Manual Set
