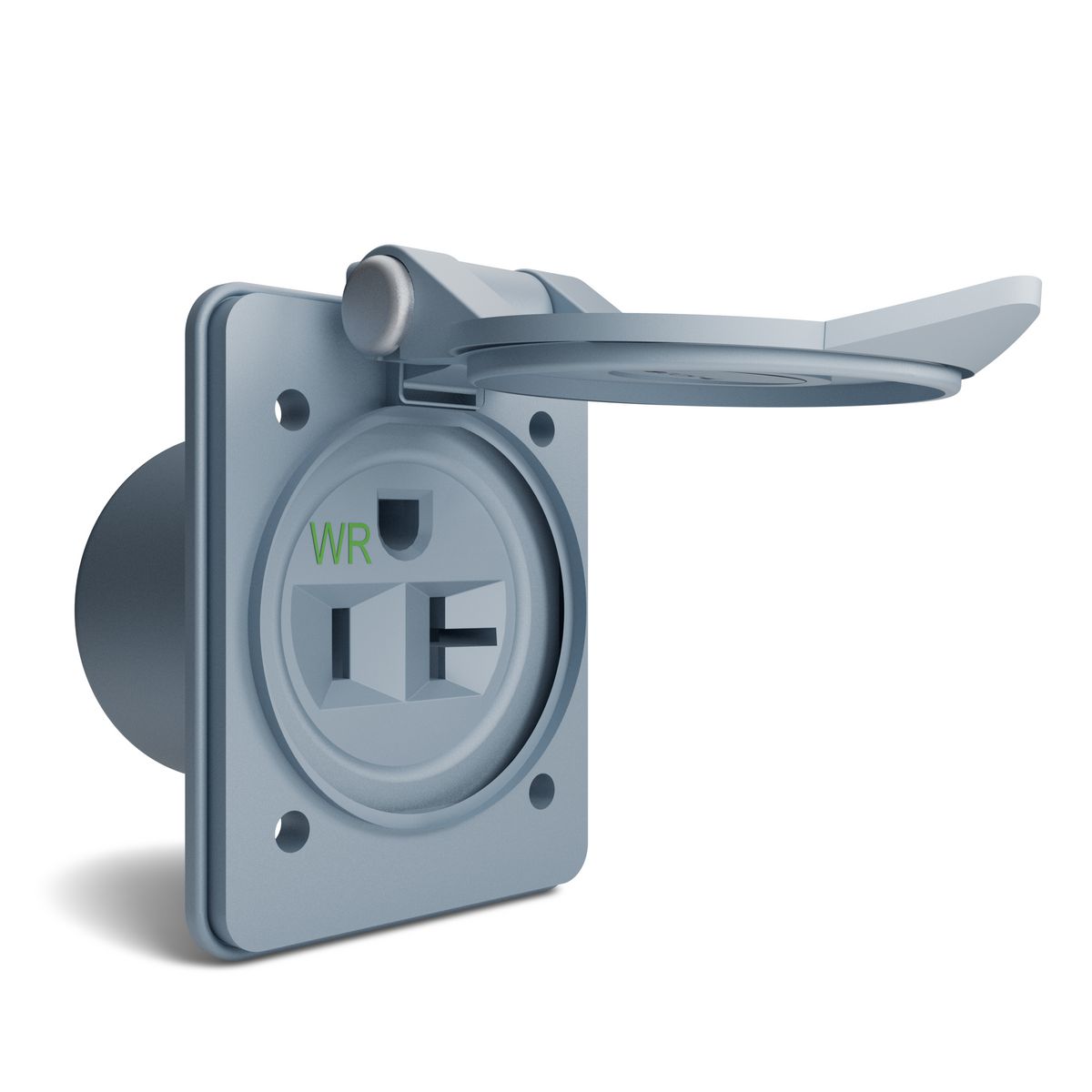

Hubbell HBL61CM65 20A 125V INSULGRIP Gray Nylon Flanged Receptacle, w/ Lift Cover & Boot

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL61CM65 | Codale Part # 330248
$101.05/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Outlet, Flanged, Marine, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Gray, Single Pack.

Technical Information

Amperage
20 Amp
Applications
Heavy duty, high leverage diagonal cutter
Conductor Size
14-10 AWG
Connection Type
Screw Terminal
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Horsepower
0.50 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,E2186,UL
Style
Weather Proof And Corrosion Resistant
Tc Connection
Screw Terminals
Type
Heavy Duty, Corrosion Resistant, Flanged
Voltage
125 Volt
Wattage
2000 Watt
Wire Count
3
Wire Size
14-10 horse power

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585808673
Color
Gray
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Heavy Duty Specification Grade
Product UPC
78358580867
Weight
0.25 lb

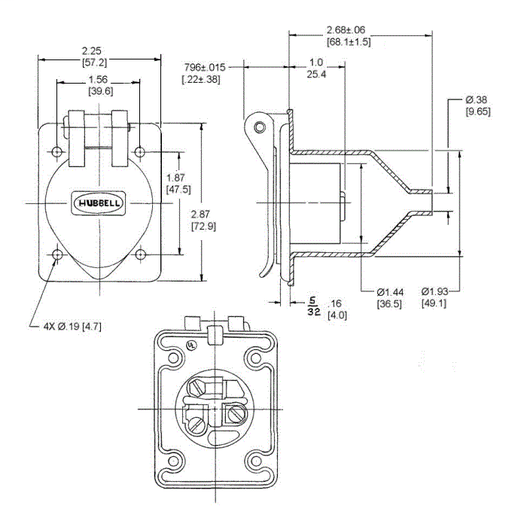

Dimensions

Height
2.68 Inch
Length
2.68 Inch
Width
2.25 in

Certifications and Compliance

Country of Origin
USA
Features
  • Weatherproof flip lid
  • Weatherproof boot covers terminals
  • Multiple drive screws
  • Nickel plated brass contacts
  • Corrosion Resistant
