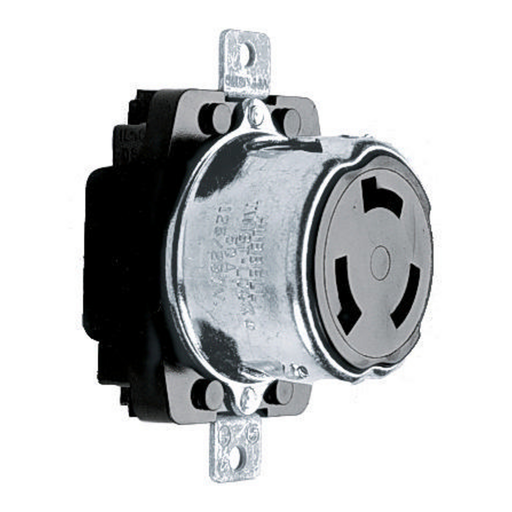

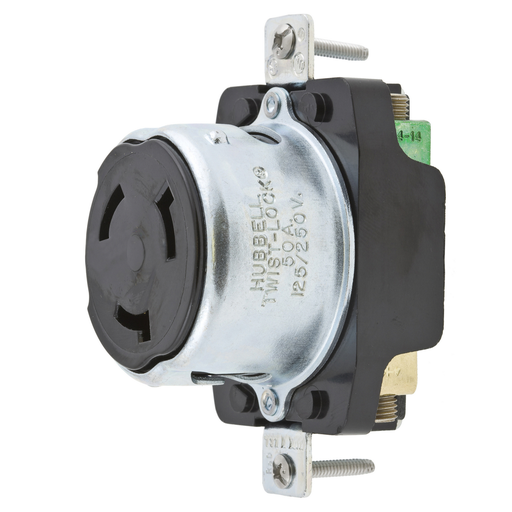

Product image for Hubbell HBL63CM69 50 Amp 125/250 Volt 3-Pole 4-Wire Yellow Locking Receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 6
Image thumbnail 7
Email

Hubbell HBL63CM69 50 Amp 125/250 Volt 3-Pole 4-Wire Yellow Locking Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL63CM69 | Codale Part # 330255
$313.85/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Locking Devices, Twist-Lock®, Marine Grade, Receptacle, 50A 125/250V, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Galvanized

Technical Information

Amperage
50 Amp
Applications
Marine Wiring Devices
Conductor Size
6 AWG
Current
50 Amp
Grade
Marine
Grounding
Grounding
Material
Thermoplastic
Mounting Type
Screw, Surface, External
Number of Phases
1 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Rating
125/250 V
Size
Standard Sized
Standard
UL
Tc Connection
Screw Terminal
Type
Single
Voltage
125/250 Volt
Wattage
12500 Watt
Wire Count
4
Wire Size
6 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585808741
Color
Yellow
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358580874
Weight
0.85 lb

Dimensions

Height
2-1/2 Inch
Length
8.9 Inch
Width
4.5 in

Certifications and Compliance

Country of Origin
USA
Features
  • Marine Grade
  • Receptacle
  • 50A 125/250V
  • Corrosion Resistant
