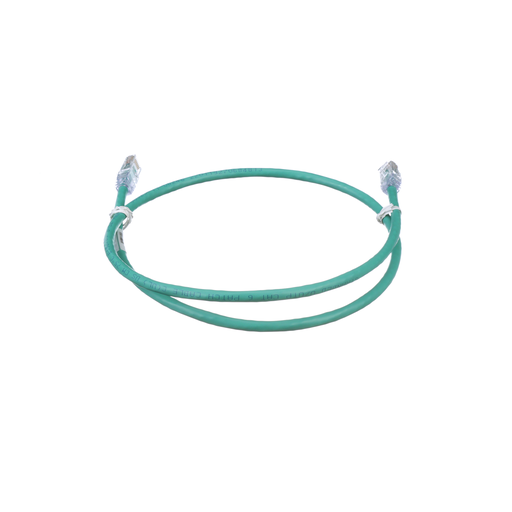

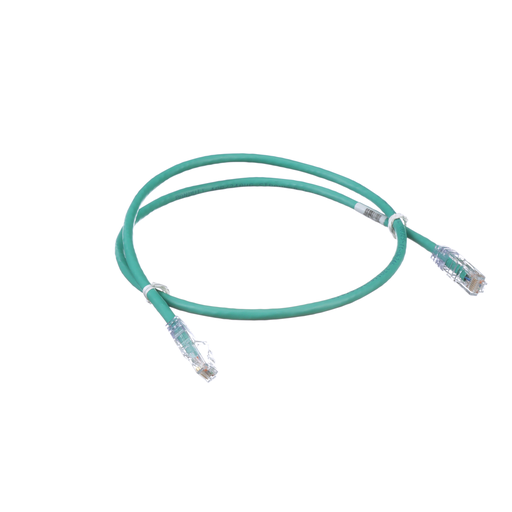

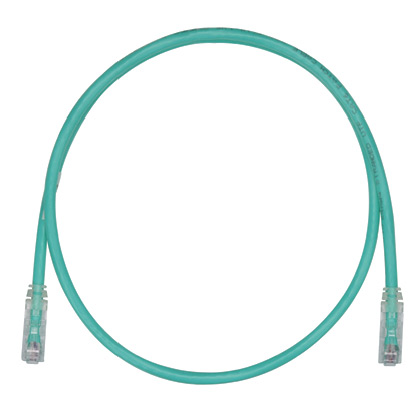

Panduit UTPSP3GRY Cat 6 24 AWG UTP Copper Patch Cord, 3 ft, Green

Manufacturer: Panduit | Catalog # UTPSP3GRY | Codale Part # 3303324
$43.92/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
The TX6™ PLUS Cat 6 UTP Patch Cord is constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with enhanced performance modular plugs. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord.s slender strain relief boot provides easy access in high-density applications. The patch cord is 3 feet in length and green.

Technical Information

Applications
For Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T, 155 Mbps ATM, 622 Mbps ATM, 1.2 Gbps ATM, Token Ring 4/16, Digital Video and Broadband/Baseband Analog Video, Voice Over Internet Protocol (VoIP)
Boot Color
Clear
Cable Type
24 AWG U/UTP
Conductor Material
Copper
Conductor Size
24 AWG
Conductor Type
Stranded
Connector Type
Modular Plug
Material
Copper
Max Operating Temperature
140 degrees F
Min Operating Temperature
14 degrees F
Performance Level
Category 6
Plug Type
Modular Plug with Bulkhead and Dust Cap
Temperature Rating
140 degrees F
Type
Category 6
Wire Size
24 AWG

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983170463
Color
Green
Jacket Material
Polyvinyl Chloride
Product UPC
07498317046
UNSPSC
43223303
Weight
0.1400 lb

Dimensions

Cable Length
3 ft
Length
3 Inch
Outer Diameter
0.23 in
Outside Diameter
5.8 mm
Overall Length
3 ft

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Costa Rica,Mexico,Romania

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.
Prop 65
  • No
