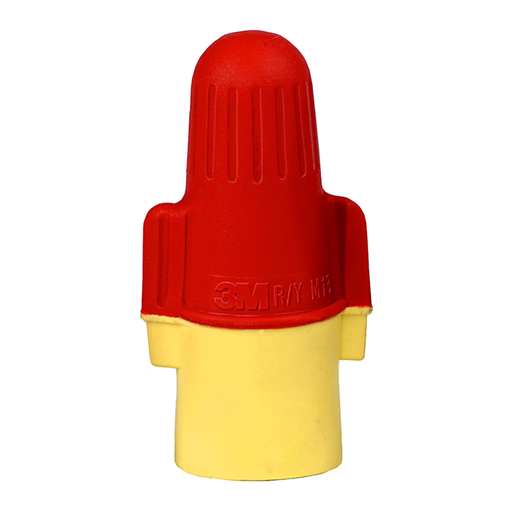

Product image for 3M R/Y+BOX 100/Box Red/Yellow Spring Connector
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

3M R/Y+BOX 100/Box Red/Yellow Spring Connector

Manufacturer: 3M | Catalog # 7100127164 | Codale Part # 330357
$0.50/ea
ea

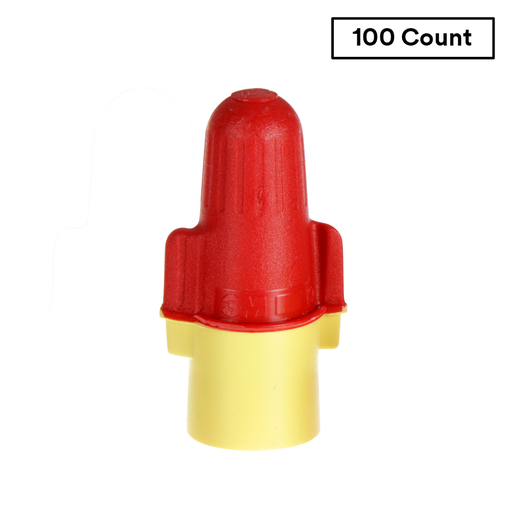

Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
3,200 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page
3M™ Performance Plus™ Wire Connectors are designed with a uniquely flexible springthat has generous room for expansion and a strong bite for a secure connection. Becauseof their increased wire range, just three Performance Plus wire connectors handle thework of eight standard connectors. And theflexible skirt helps prevent copper exposure for enhanced safety.

Technical Information

Applications

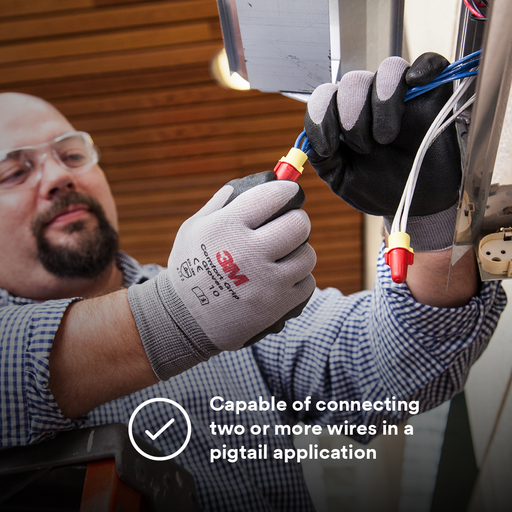

To Electrically Connect Two or more Conductor Ends in a Pigtail and Insulate the Connection
Conductor Size

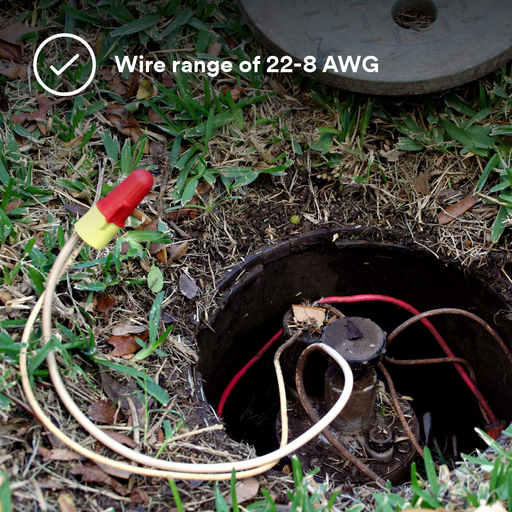

22-8 AWG
Connection Type
Twist-On
Contact Material
Spring Steel
Flame Retardant
Yes
Insulation Material
Polypropylene, Thermoplastic Elastomer
Material
Polypropylene
Max Operating Temperature
105 degrees C
Temperature Rating
105 degrees C
Type
Twist On
Voltage
600 Volt

Manufacturer Information

Brand
3M
Sub Brand
Performance Plus™, Scotchlok™

General Product Info

12-Digit UPC
054007431541
Color
Red/Yellow
Product UPC
05400743154
Weight
0.7740 lb

Dimensions

Diameter
0.76 Inch
Length
1.43 Inch

Certifications and Compliance

Country of Origin
USA
Features
  • Strong bite for a secure, reliable connection

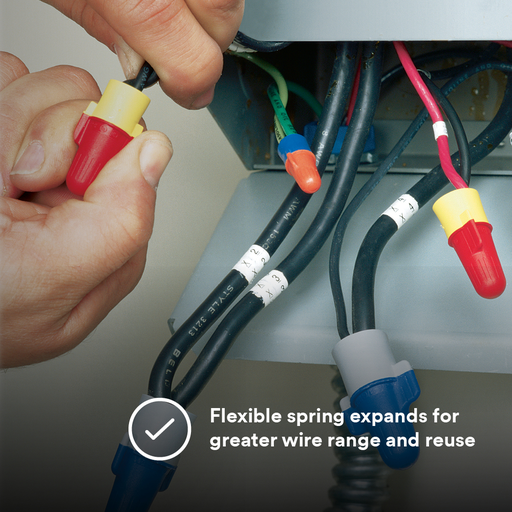

  • Flexible spring expands for greater wire range and reuse
  • Dual color coded: one connector does the job of two traditional connectors in the majority of applications
  • UL Listed
