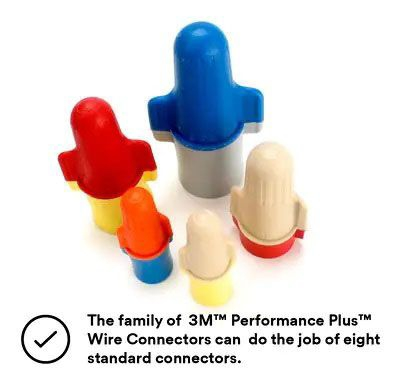

Product image for 3M R/Y+JUG Red/Yellow Performance Plus™ Wire Connector (Jug of 500)
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

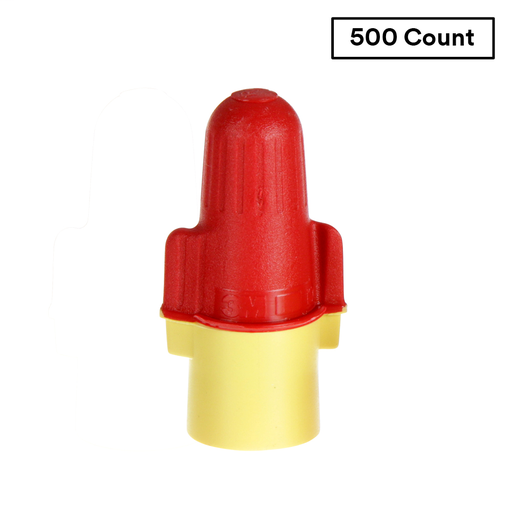

3M R/Y+JUG Red/Yellow Performance Plus™ Wire Connector (Jug of 500)

Manufacturer: 3M | Catalog # 7000058824 | Codale Part # 330358
$0.31/ea
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
9,000 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page
The 3M™ Performance Plus Wire Connector electrically connects two or more conductor ends in a pigtail application and insulates the connection. It combines a very small shell with an increased wire range. The spring bites wire quickly with less effort, and the small shell fits easily into tight spaces, while its flexible skirt helps protect workers from contact with over-stripped wires. This 3M™ Performance Plus connector is great for various conductor sizes; four #14, two #2 and three #8 AWG.

Technical Information

Conductor Size
22-8 AWG
Connection Type
Wire
Flame Retardant
Yes
Material
Plastic
Max Operating Temperature
105 degrees C
Max Voltage
600 V
Tc Connection
Twist On
Temperature Rating
221 degrees F
Type
Flame Retardant
Voltage
1000 Volt

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007431558
Color
Red/Yellow
Product UPC
05400743155
Weight
4.1800 lb

Certifications and Compliance

Country of Origin
USA
Features
  • Strong Bite for a Secure, Reliable Connection
  • Flexible Spring Expands for Greater Wire Range and Reuse
  • Dual Color Coded: One Connector Does the Job of Two Traditional Connectors in the Majority of Applications
  • RoHS Compliant
Additional Information

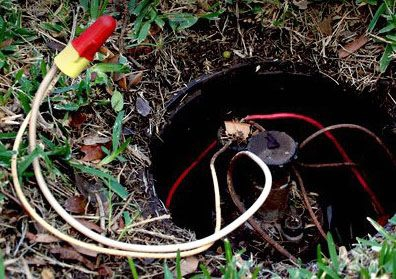

  • Application Pigtail, Appliance and Fixture, Industrial/Irrigation/Residential Construction, Automotive, Marine and Appliance
