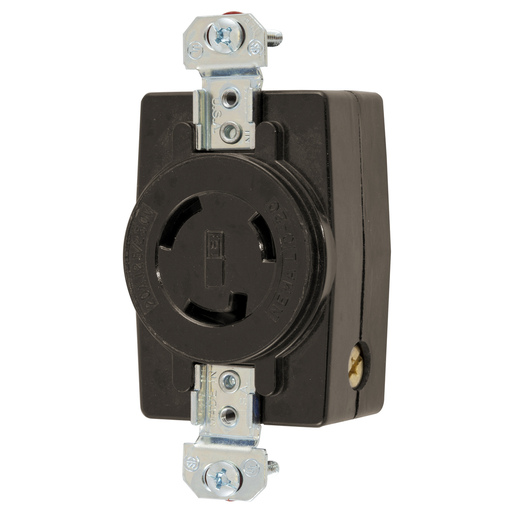

Hubbell HBL2360 Locking Receptacle, 20A 125/250V, L10-20R, BK

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2360 | Codale Part # 3306206
$79.73/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 20A 125/250V, 3-Pole 3-Wire Non-Grounding, NEMA L10-20R, Screw Terminal, Nylon face, Back and side wire, Black.

Technical Information

Amperage
20 Amp
Applications
Heavy Duty Industrial
Base Material
Glass-Reinforced Thermoplastic Polyester (RTP),Plastic,RTP
Conductor Size
14-8 AWG
Contact Material
Brass
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon,Nylon
Flamability Class
V2 Or Better Per UL94/CSA 22.2 No.0.17
Material
Thermoplastic
Mounting Type
Screw
NEMA
L10-20R
Number of Phases
1 Phase
Number of Poles
3 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
#10 - 32 Brass
Size
Standard
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Screw Terminal
Type
Single Flush Receptacle
Voltage
125/250 Volt
Wattage
5000 Watt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585128931
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358512893
Weight
0.2500 lb

Dimensions

Height
1.66 Inch
Length
4.16 Inch
Width
1.900 in

Certifications and Compliance

Country of Origin
USA
Features
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • Face color coding by voltage facilitates locating and mating of proper devices
  • All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • Standard
