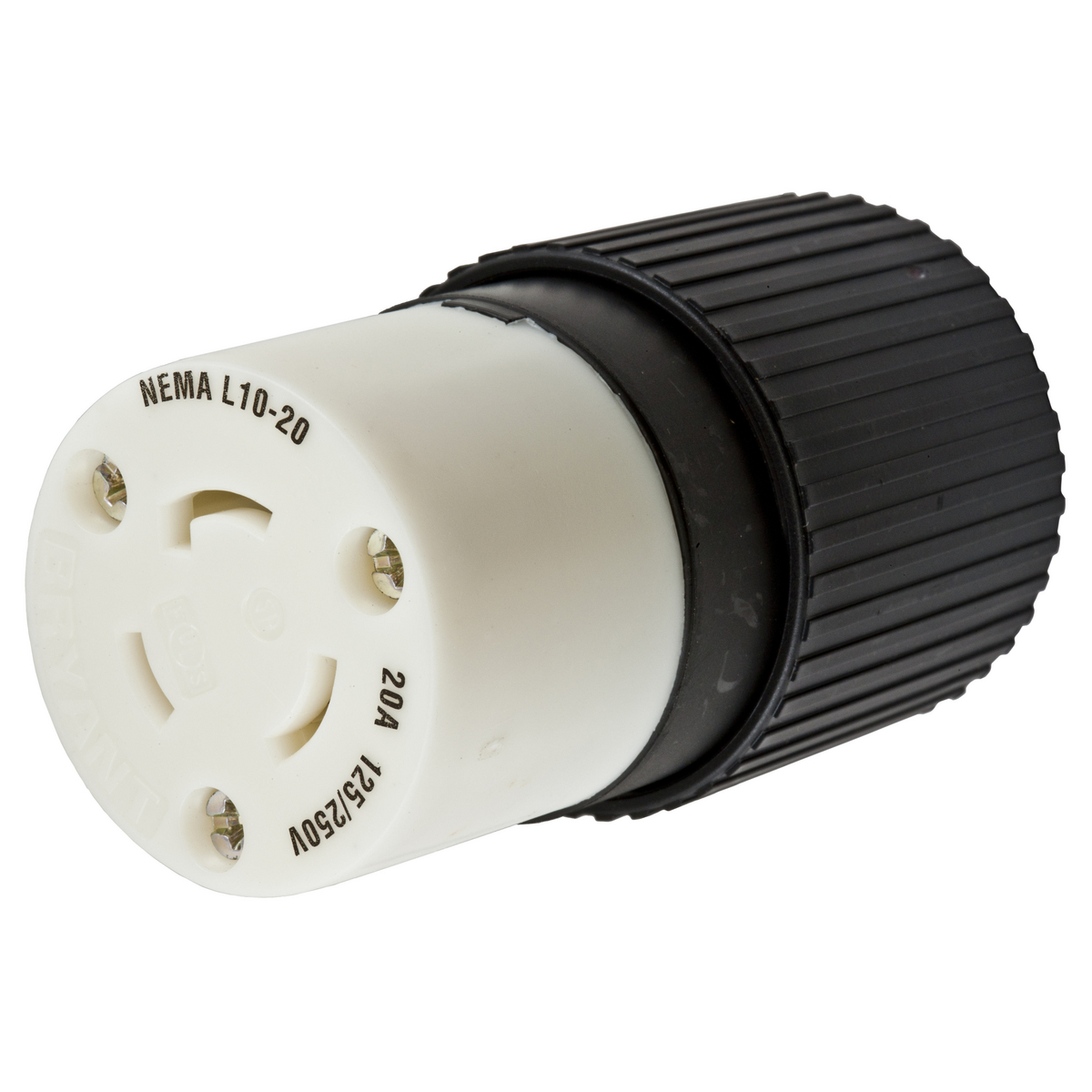

Hubbell HBL2363 Locking Connector, 20A 125/250V, L10-20R, B/W

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2363 | Codale Part # 3306207
$142.22/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 20A 125/250V AC, 3-Pole 3-Wire Non-Grounding, NEMA L10- 20R, Screw Terminal, Black and White Nylon.

Technical Information

Amperage
20 Amp
Applications
Heavy Duty Industrial
Conductor Size
12-10 AWG
Contact Material
Brass
Current
20 Amp
Flamability Class
HB Or Better Per UL94 Or CSA 22.2 No. 0.6
Grounding
Non-Grounding
Material
Nylon
Mounting Type
Cord
NEMA
L10-20R
Number of Conductors
3-Wire Non-Grounding
Number of Poles
4 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
#10-32 Brass
Size
Standard
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Pressure Screw Terminal
Temperature Rating
-40 to 75 degrees F
Type
Connector Body
Voltage
125/250 Volt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585128955
Color
Black/White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358512895
Weight
0.3000 lb

Dimensions

Height
2.418 Inch
Length
3.978 Inch
Width
2.400 in

Certifications and Compliance

Country of Origin
USA
Features
  • Superior cord grip design protects terminations from excess strain.
  • Clear, funnel shaped wire entry for ease of termination.
  • Integral dust shield protects wiring chamber from dust or contaminants.
  • Standard Product
