Panduit PV14-8RB-3K Ring Terminal, Black, Vinyl, 14-16 AWG, #8 Stud, PK3000

Manufacturer: PANDUIT | Catalog # PV14-8RB-3K | Codale Part # 3306333
$630.52/m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page

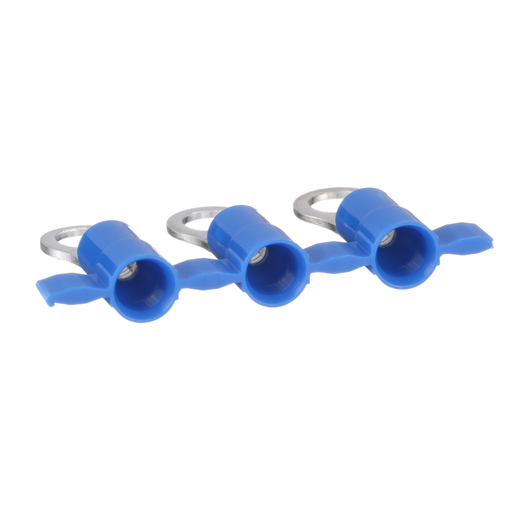

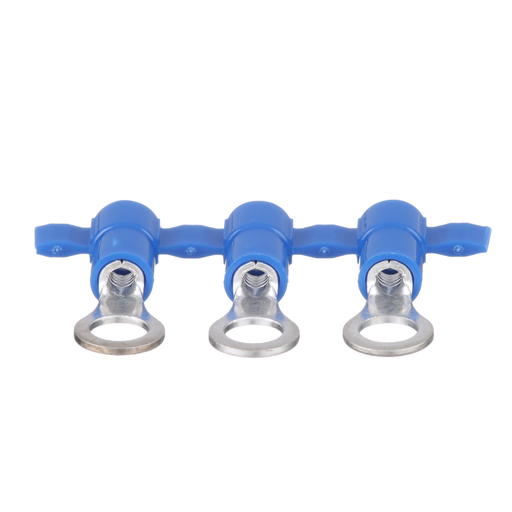

The PV14-8RB-3K Reel Smart™ Terminal is a continuously molded and vinyl fully insulated ring terminal. The continuously molded design allows for consistent and reliable processing through Panduit applicators. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.

Technical Information

Barrel Length
0.35 in
Barrel Type
Funnel
Color Coding
Blue
Conductor Size
14 AWG
Enclosure
Ring shape
Material
Copper
Max Operating Temperature
105 degrees C
Size
#8
Tc Connection
Funnel Entry
Temperature Rating
221 F
Tongue Thickness
0.03 in
Tongue Width
0.31 in
Type
Ring Terminal
Voltage
600 Volt
Wire Size
14 AWG

Packaging

Pkg Qty
3000

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Reel Smart™

General Product Info

12-Digit UPC
074983803569
Color
Blue
Finish
Tin Plated
Product UPC
07498380356
Weight
0.0090 lb

Dimensions

Overall Length
0.86 in
Width
0.31 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
