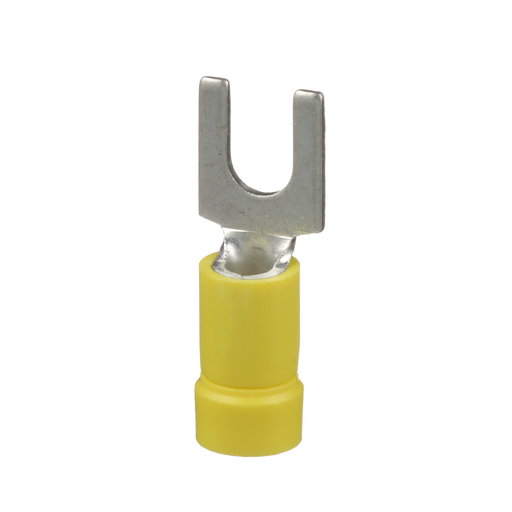

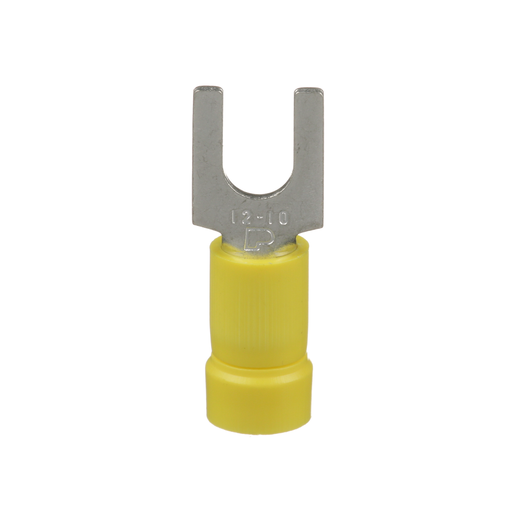

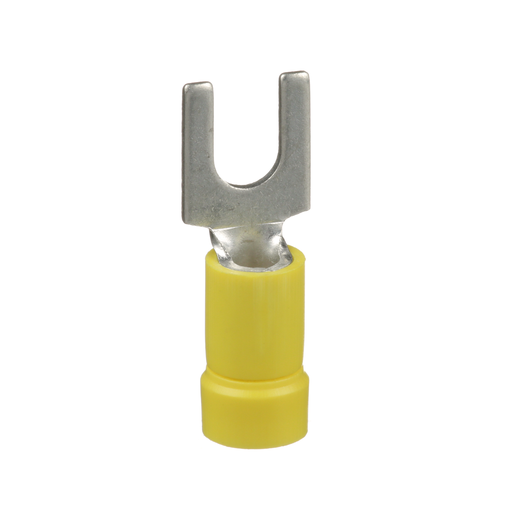

Panduit PV10-10FB-2K Fork Terminal, Yellow, Vinyl, 10-12 AWG, #10 Stud

Manufacturer: PANDUIT | Catalog # PV10-10FB-2K | Codale Part # 3306334
$911.70/m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
Fork Terminal, vinyl insulated, funnel entry, plastic insulation crimp, 12 - 10 AWG wire range, #10 stud size.

Technical Information

Barrel Length
0.39 in
Barrel Type
Funnel
Color Coding
Yellow
Conductor Size
10 AWG
Enclosure
Fork shape
Material
Copper
Max Operating Temperature
105 degrees C
Size
#10
Tc Connection
Funnel Entry
Temperature Rating
221 F
Tongue Thickness
0.04 in
Tongue Width
0.34 in
Type
Fork Terminal
Voltage
600 Volt
Wire Size
10 AWG

Packaging

Pkg Qty
2000

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Reel Smart™

General Product Info

12-Digit UPC
074983804504
Color
Yellow
Finish
Tin Plated
Product UPC
07498380450
UNSPSC
39121409
Weight
0.0114 lb

Dimensions

Outer Diameter
0.23 in
Overall Length
1.04 in
Width
0.34 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL Listed 587H E52164; CSA Certified LR31212
