3M 7100003556 3M™ Scotchlok™ Nylon

Manufacturer: 3M | Catalog # 7100003556 | Codale Part # 3306415
$1.41/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
3M™ Scotchlok™ Color-Coded Male Disconnect Terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Diameter
0.145 in
Barrel Length
0.25 in
Barrel Type
Butted
Conductor Size
18 AWG
Insulation Material
Insulation Grip,Nylon
Material
Nylon
Terminal Size
22 - 18 AWG
Terminal Style
Fully Insulated
Terminal Type
Standard
Type
Disconnect

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok

General Product Info

12-Digit UPC
054007023029
Product UPC
05400702302
Weight
0.0033 lb

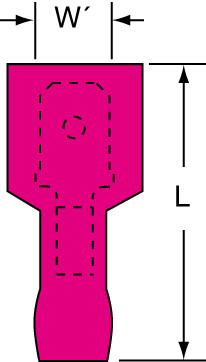

Dimensions

Diameter
0.3 Inch
Overall Length
0.95 in
Pad Width
0.25 in
Width
0.44 in

Certifications and Compliance

Country of Origin
USA
Features
  • This male disconnect terminal offers excellent holding force
  • Allows for quick and easy disconnect of wires
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
