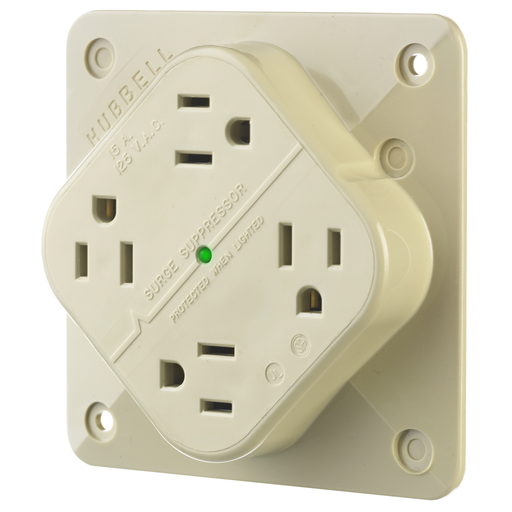

Hubbell HBL415IS4-PLEX SPD Receptacle, 15A 125V, 5-15R, IV

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL415IS | Codale Part # 3306735
$164.96/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
4-PLEX Surge Suppression Receptacle, 2Pole 3Wire, 15A 125V, 5-15R, Ivory.

Technical Information

Amperage
15 Amp
Applications
For 4-Plex with LED Applications
Base Material
PBT
Conductor Size
14-12 AWG
Current
15 Amp
Face Material
Polycarbonate
Frequency
60 Hz
Horsepower
1 hp
Material
Polycarbonate
Mounting Type
Screw
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Response Time
5n s
Size
Standard
Standard
CSA 22.2,NEMA® WD-6,No. 42 File 285,UL Standard 498 File E2186
Tc Connection
Terminal Screws
Temperature Rating
32 - 140 degrees F
Type
Standard
Voltage
125 Volt
Wire Count
3
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
SpikeShield®

General Product Info

12-Digit UPC
783585017860
Class
Normal and Common Mode
Color
Ivory
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
4-Outlet Receptacle
Product UPC
78358501786
Weight
0.35 lb

Dimensions

Height
4.3 Inch
Length
4.3 Inch
Width
0.92 in

Certifications and Compliance

Country of Origin
USA
Features
  • Surge supression with lights, 80 joules/6500A per mode
  • Anchor hole and loop feature secures solid wire for fast, easy terminations
  • Triple wipe contacts
  • Easily accessible break-off tabs for split wiring
  • Three conductors energize all four outlets
