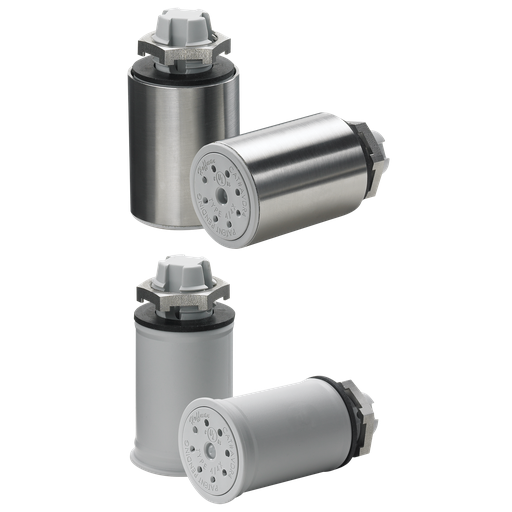

Product image for Hoffman AVDR4SS4 H2OMIT Vent Drain, 2" x 1.38 OD, Stainless Steel
Image thumbnail 0
Image thumbnail 1
Email

Hoffman AVDR4SS4 H2OMIT Vent Drain, 2" x 1.38 OD, Stainless Steel

Manufacturer: nVent Hoffman | Catalog # AVDR4SS4 | Codale Part # 3307756
$263.03/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
H2Omit Vent Drains allow accumulated water to drain out the bottom of an enclosure. The UL-approved vent drains also function as an air pressure equalizer, reducing the harmful effects of temperature-induced vacuums that could pull water and moisture into the enclosure.

Technical Information

Applications
Controls and Drives; Hygienic Environments; Power Distribution
Material
Stainless Steel
Type
Cooling Accessories

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
H2omit

General Product Info

12-Digit UPC
783510177645
Finish
Brushed
Product UPC
78351017764
Used With
Condensation and Pressure Compensation Devices
Weight
0.25 lb

Dimensions

Depth
1.38 Inch
Height
1-1/2 Inch
Length
4 Inch
Width
1.38 in
DISK UNSPSC
40101902
Features
  • Uses gravity to remove collected liquids
  • One-way mechanical shut-off when pressure is equalized prevents water and contaminants from entering the enclosure
  • Helps reduce corrosion that can limit the life of internal electrical and electronic components
  • Installs in a 7/8-inch hole in the bottom of enclosure with provided nut or in a 1/2-inch NPT/NPS threaded conduit hub
  • Installs in the bottom of mild steel, aluminum, stainless steel or non-metallic enclosures
  • Maintains the enclosure UL Type rating when properly installed
  • Stainless Steel Vent Drain
  • Corrosion-resistant polyester material with a Type 304 stainless steel sleeve
  • Non-Metallic Drain Vent
  • Corrosion-resistant polyester material
  • 2.00-inch long x 1.25-inch outside diameter
