Hubbell 1221R Hubbell-PRO Single Pole Toggle Switch, 20A 120/277V, Red

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # 1221R | Codale Part # 3308128
$5.02/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Red

Technical Information

Action
Positive Snap
Actuator
Toggle
Amperage
20 Amp
Applications
Heavy Duty Industrial
Conductor Size
14-10 AWG
Contact Configuration
Two Position
Contact Rating
Per UL 20
Current
20 Amp
Enclosure
None
Grade
Industrial
Material
Thermoplastic
Number of Poles
1 Pole
Number of Wires
3 Wire
Operating Cycles
50000
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
UL
Style
Smooth Face Single Pole
Switch Type
Single Pole
Tc Connection
Back and Side Wired
Type
General Purpose, Standard, Heavy Duty, 2-Position
Voltage
120-277 Volt
Wattage
3750 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585154527
Color
Red
Environmental Conditions
Indoor Dry unless protected by additional means
Product Series
Hubbell-PRO Heavy Duty
Product UPC
78358515452
Weight
0.15 lb

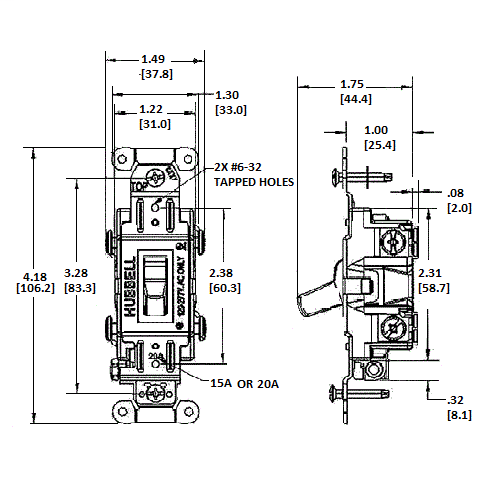

Dimensions

Height
1.83 Inch
Length
4.18 Inch
Width
1.49 in

Certifications and Compliance

Country of Origin
China
Features
  • Steel, zinc plated bridge is corrosion resistant
  • Color Coded by Amperage makes inspection easy even when installed
  • Strip gauge for accurate wiring
