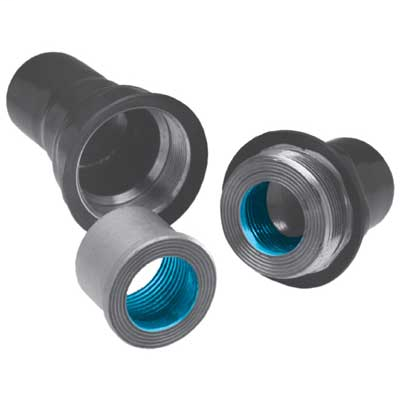

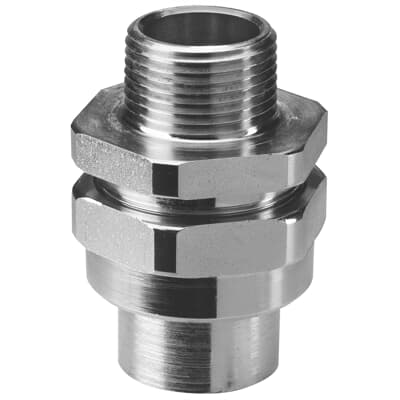

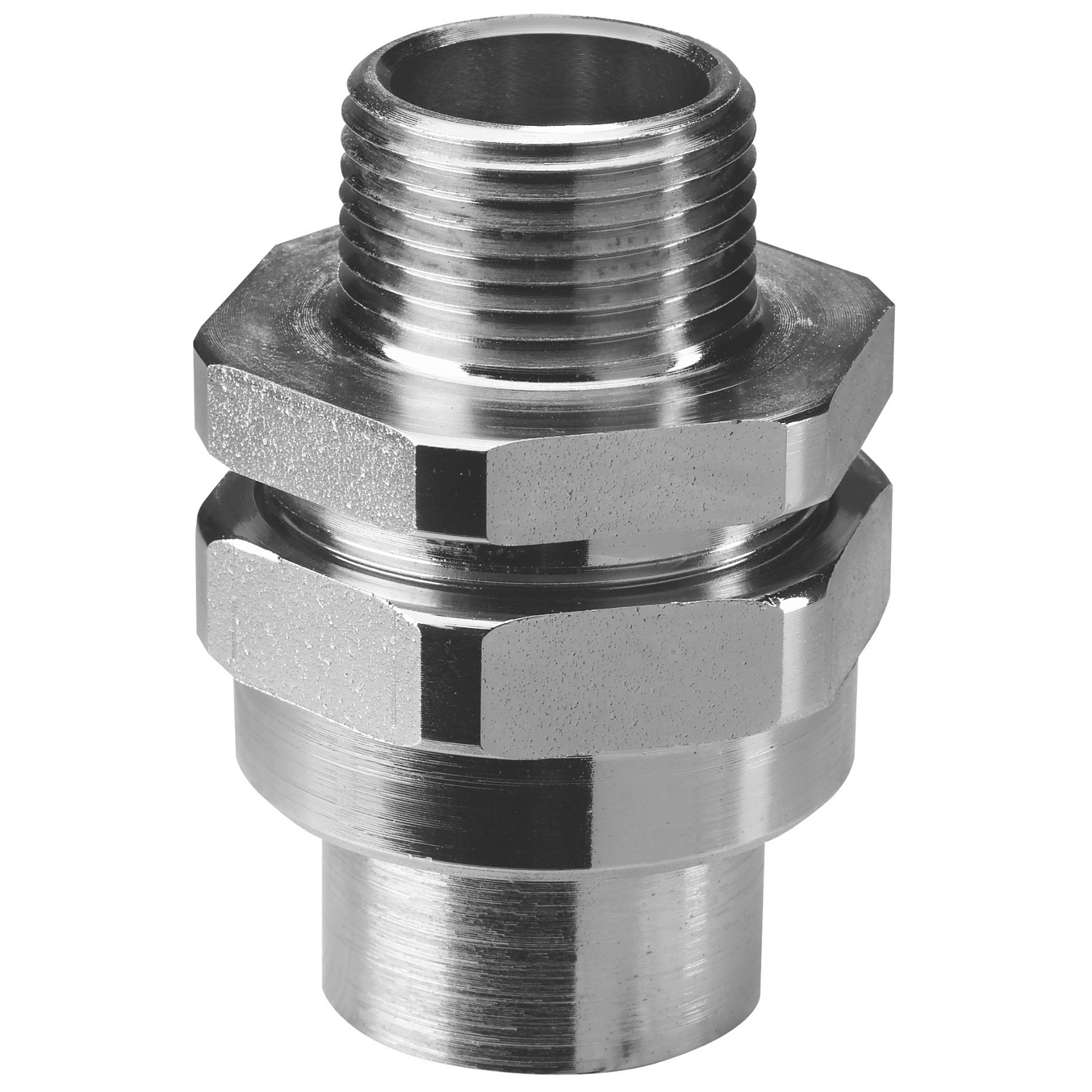

Product image for Ocal UNY 305-G 1 Inch Ocal Gray Male Union
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Ocal UNY 305-G 1 Inch Ocal Gray Male Union

Manufacturer: ABB Ocal | Catalog # UNY305-G | Codale Part # 3309479
$214.95/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
PVC Coated Explosion and Dust-Ignition Proof UNY Male Union, Pipe Size 1 Inch/27 Metric, 3 Piece, for Hazardous and Non-hazardous Locations, Overall Length 2.75 Inch/69.85 Millimeters, Overall Diameter 2.00 Inch/50.80 Millimeters, Electrogalvanized Steel, Gray

Technical Information

Applications
Used to Connect Conduit to a Conduit Fitting, Junction Box, or Device Enclosure
Connection Type
Male Threaded
Material
Steel
Size
1 in
Standard
CSA,UL 1203
Trade Size
1 Inch
Type
Type UNY

Manufacturer Information

Brand
ABB
Sub Brand
Ocal®

General Product Info

12-Digit UPC
704508413958
Color
Gray
Finish
PVC Coated
Product UPC
70450841395
Weight
1.1100 lb

Dimensions

Length
2-3/4 Inch
Outside Diameter
2.00 in
Features
  • A minimum .040 in. (40 mil) PVC Coating is bonded to the exterior.
  • Coated with a nominal .002 in. (2 mil) blue urethane on the interior, before PVC Coating is applied.
  • Pressure sealing sleeves to protect the connection.
Application
  • To connect conduit to a conduit fitting, junction box, or device enclosure.
Notes
  • Standard color is dark gray. Also available in white and light blue. Custom colors are also available upon request. Please contact Technical Services, 888-862-3289.
  • Dimensional values are of uncoated fittings.
