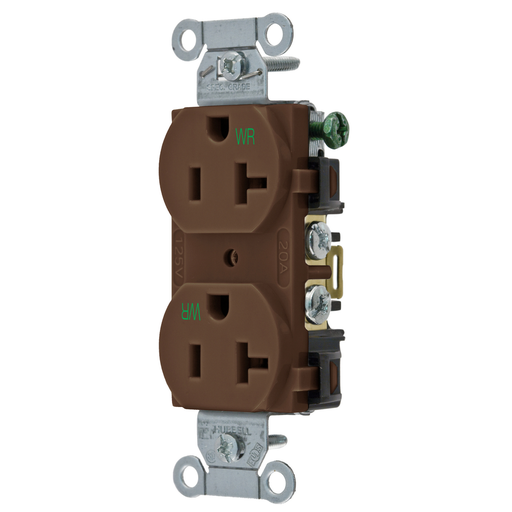

Hubbell BR20WR WTR RES, COM GRD, 20A 125V, 5-20R, BR

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # BR20WR | Codale Part # 3309559
$7.85/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Weather-Resistant Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5- 20R, Brown, Single Pack.

Technical Information

Amperage
20 Amp
Applications
Commercial Specification Grade
Base Material
Nylon
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Commercial Specification
Grounding
Self
Horsepower
1 hp
Material
Nylon
Mounting Type
Screw
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,E2186,UL
Style
Smooth Face
Tc Connection
Back & Side Wired
Type
Traditional
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade and Twist-Lock

General Product Info

12-Digit UPC
783585144603
Color
Brown
Environmental Conditions
Indoor Dry Unless Protected by Additional Means, Weather-Resistant
Product Series
Commercial Specification Grade
Product UPC
78358514460
Weight
0.15 lb

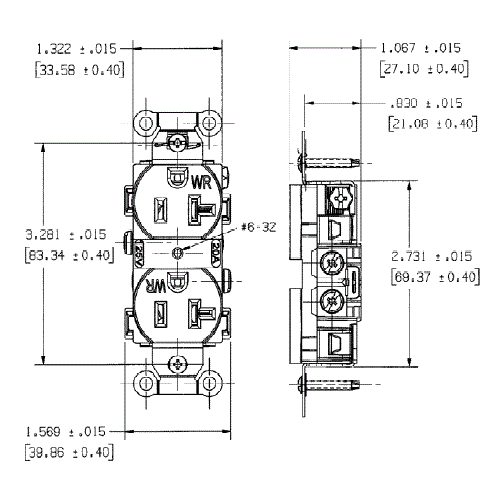

Dimensions

Height
3.28 Inch
Length
1.32 Inch
Width
1.06 in

Certifications and Compliance

Country of Origin
China
Features
  • Individual wiring terminals completely enclosed
  • Powerful, offsetting cord grips clamp on individual conductors
  • Wrap-around galvanized steel straps
  • Triple wipe contacts
  • Weather Resistant- Self Grounding
