Hubbell DS115W 15 Amp 120/277 VAC 1-Pole White Rocker Switch

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # DS115W | Codale Part # 3309729
$5.94/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Control, Decorator Switch, Specification Grade, Single Pole, 15A 120/277V AC, Back and Side Wired, White

Technical Information

Action
Positive Snap, Off
Actuator
Rocker
Amperage
15 Amp
Applications
For Commercial use
Conductor Size
14-10 AWG
Contact Configuration
2 Position
Contact Rating
Per UL 20
Current
15 Amp
Enclosure
None
Indicator
None
Material
Composite
Mounting Type
Flush, Screw
Number of Poles
1 Pole
Operating Cycles
50000
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
UL
Style
Single Pole
Switch Type
Single Pole
Tc Connection
Terminal Screw
Temperature Rating
75 degrees C Maximum Continuous, -40 degrees C Minimum Without Impact
Type
General Purpose, Heavy Duty, Standard, 2 Position
Voltage
120-277 Volt
Wattage
4.155 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Decorator Switches

General Product Info

12-Digit UPC
783585108315
Color
White
Environmental Conditions
Indoor Dry unless protected by additional means
Product Series
General Purpose
Product UPC
78358510831
Weight
0.2 lb

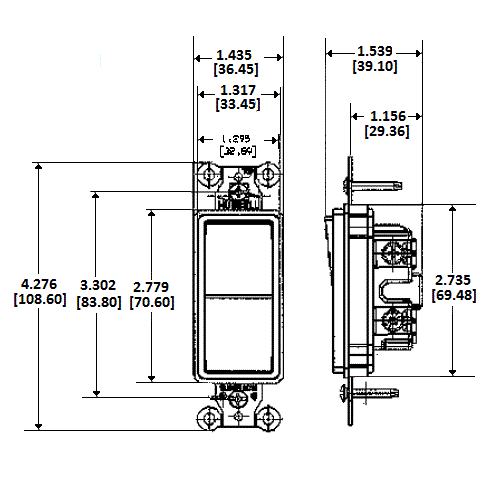

Dimensions

Height
1.54 Inch
Length
4.28 Inch
Width
1.43 in

Certifications and Compliance

Country of Origin
China
Features
  • Thread cleaning captive mounting screw
  • Steel, zinc plated bridge is corrosion resistant
  • Automatic self-grounding staple
