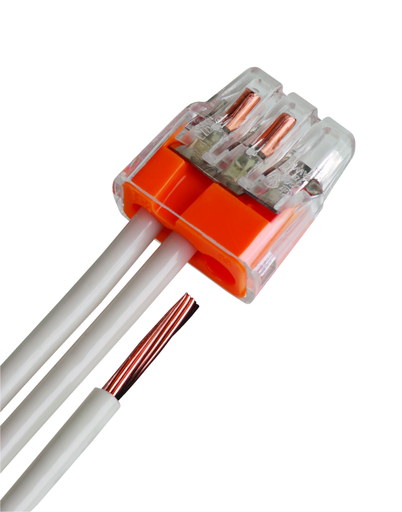

Ideal 30-1033J Orange 3-Port Push-In Wire Connector (Jar of 250)

Manufacturer: Ideal Industries | Catalog # 30-1033J | Codale Part # 3310868

$21.33/c (100 ea)
ea
Order in multiples of 250 (pack qty)
Log in or register to view your price, purchase history, and more!
15,750 available

For Delivery

Not in local stock *
Check your local branch
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet MDM Safety Data Sheet
Strip, push, connect . the fastest way to make a connection.The In-Sure® Push-In Wire Connector is perfect for residential, light commercial, lighting retrofit, and pre-fab wiring systems, or any other branch circuit wiring application where a traditional twist-on wire connector would be used. Simply push the wire in . the low insertion force makes it easy.The color-coded shell allows for quick identification of port configuration while the clear polycarbonate housing allows for visual verification of every connection. The ergonomic design is easier to grip which means more comfortable push-in connections. The compact size makes for easy installations in even the tightest spots or shallow boxes, and the tough, flame-retardant shell stands up to the harshest environments.UL Listed, CSA Certified, and rated to 600V . the In-Sure® saves time and improves productivity while perfecting connections.

Technical Information

Amperage
32 Amp
Applications
For Grounding And Bonding Applications
Conductor Size
20-12 AWG/16-12 AWG/18-14 AWG
Material
Polycarbonate
Number of Conductors
3
Number of Ports
3
Size
0.780 IN Length X 0.690 IN Width X 0.380 IN Height
Tc Connection
3 Ports
Temperature Rating
105 C
Type
Push-In
Voltage
600/1000 Volt
Wire Size
20-12/16-12/18-14 AWG
Wire Type
Solid, Stranded, Stranded (Tin Bonded)

Manufacturer Information

Brand
Ideal Industries
Sub Brand
In-Sure™

General Product Info

12-Digit UPC
783250693559
Color
Orange
Product UPC
78325069355
Weight
1.3400 lb

Dimensions

Length
0.78 Inch

Certifications and Compliance

Buy American Compliant
Y

Certifications & Compliance

Prop 65 Warning
WARNING: Cancer and Reproductive Harm -  www.P65Warnings.ca.gov.
Features
  • Ergonomic design for easy grip and comfortable installation
  • Low insertion force for fast and easy connections
  • Compact size makes installation easy
  • Clear shell gives visual verification of connection
  • Tough, UL 94V-2 flame-retardant shell rated at 105°C (221°F)
  • Approved for bonding and grounding applications
