Hubbell DS320I SWITCH, DECO SER, 3W, 20A 120/277V, IV

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # DS320I | Codale Part # 3311453
$8.10/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Control, Decorator Switch, Specification Grade, Three Way, 20A 120/277V AC, Back and Side Wired, Ivory

Technical Information

Action
SPDT
Actuator
Rocker
Amperage
20 Amp
Applications
For Commercial Use
Conductor Size
14-10 AWG
Contact Configuration
2 Position
Contact Rating
Per UL 20
Current
20 Amp
Enclosure
None
Indicator
None
Material
Thermoplastic
Number of Poles
1 Pole
Number of Positions
2
Operating Cycles
50000
Operating Temperature
-40 degrees C
Power Rating
5540 W
Size
Standard Sized
Standard
UL
Style
Three Way
Tc Connection
Back and Side Wired
Temperature Rating
-40 degrees C Minimum without Impact, 75 degrees C Maximum
Terminal Type
Screw
Type
3-Way, General Purpose, Standard
Voltage
120-277 Volt
Wattage
5540 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Decorator Switches

General Product Info

12-Digit UPC
783585108391
Color
Ivory
Environmental Conditions
Indoor Dry unless protected by additional means
Product Series
General Purpose
Product UPC
78358510839
Weight
0.2 lb

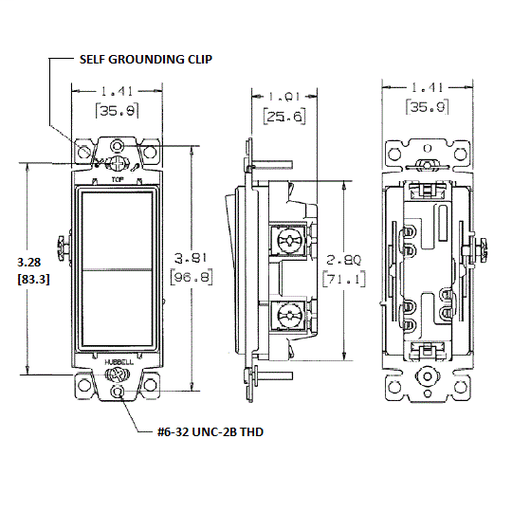

Dimensions

Height
1.01 Inch
Length
3.91 Inch
Width
1.41 in

Certifications and Compliance

Country of Origin
China
Features
  • Thread cleaning captive mounting screw
  • Steel, zinc plated bridge is corrosion resistant
  • Automatic self-grounding staple
