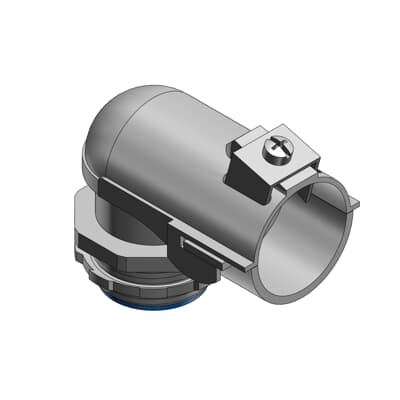

Thomas & Betts 3135 3/4 Inch 90 Degree Insulated Tite Bite Flex Connector

Manufacturer: ABB Thomas & Betts | Catalog # 3135 | Codale Part # 3311539
$2,114.99/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Metal-Clad and Armored Cable Fitting, 90 Degree Bend, Trade Size 3/4 Inch, Knockout Size 3/4 Inch, Cable Range 0.906 to 1.093 Inch, Steel with Zinc Plating, Nylon Insulated

Technical Information

Applications
For Use with Armored Cable and Flexible Metal Conduit
Cable Type
Armoured
Connection Type
90 Degree
Insulation Material
Nylon
Material
Steel
Size
3/4 in
Standard
CSA,UL E23018
Tc Connection
Male Threaded
Trade Size
3/4 Inch
Type
90, 1-Piece

Manufacturer Information

Brand
ABB
Sub Brand
Tite-Bite®

General Product Info

12-Digit UPC
786210031354
Color
Metallic
Finish
Zinc
Product UPC
78621003135
Used With
Armored Cable or Flexible Metallic Conduit

Dimensions

Length
50.8 mm
Features
  • All the advantages of the straight connector with only one screw to tighten, except in the larger sizes where there are two.
  • By far the easiest and best to install when making sharp bends at the enclosure or equipments.
  • Narrow design makes it easy to install connectors in adjacent knockouts.
  • A peep hole on top provides for easy inspection of the ABC bushing.
Application
  • For use with Armored Cable and Flexible Metal Conduit.
  • To connect and effectively bond armored cable or flexible metal conduit to a box or an enclosure.
Notes
  • U.L. Listed as a grounding means under NEC 350-5
