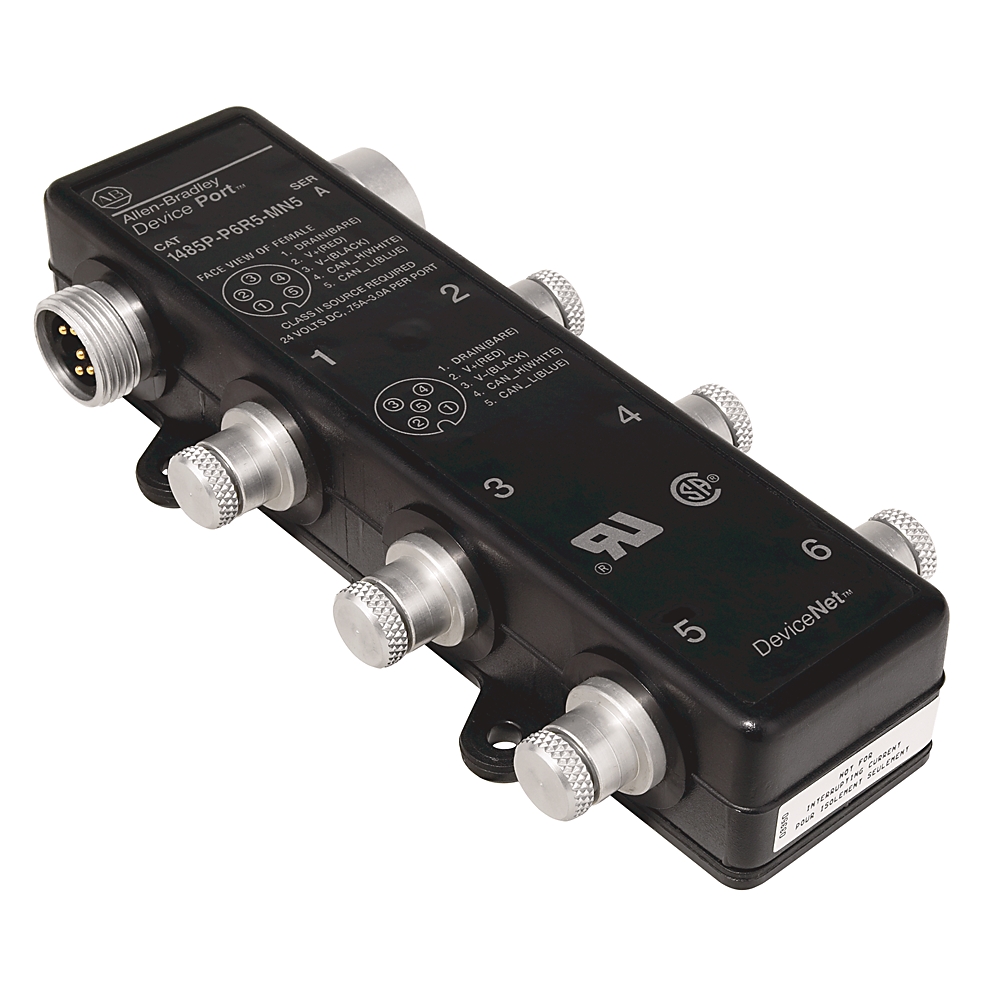

Product image for Allen Bradley 1485P-P6N5-MN5 DeviceNet Connection Device
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Allen Bradley 1485P-P6N5-MN5 DeviceNet Connection Device

Manufacturer: Allen Bradley / Rockwell | Catalog # 1485P-P6N5-MN5 | Codale Part # 3312227
$1,012.51/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
DeviceNet Connection Device

Technical Information

Amperage
3 Amp
Contact Material
Gold Plated Brass
Material
Polymer, PVC
Standard
C-TICK
Tc Connection
Mini Female
Temperature Rating
-25 to 70 degrees F
Type
Thru-Trunk, 6-Port
Voltage
24 Volt

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
DeviceNet™, DevicePort™

General Product Info

12-Digit UPC
781180397141
Product UPC
78118039714
Weight
2.4900 lb
Features
  • Sized to fit inside 1-in. conduit
  • Can provide power through only one pair of the four available contacts, so the other available pair can be used for single channel E-stop
  • Ratcheting coupling nut resists vibration
  • Physical key to ensure proper connection alignment
  • E-stop T-ports and shorting plugs are red for easy identification
  • Polyvinylchloride (PVC) jacket resists oil and chemicals
  • Highly pliable polyvinylchloride (PVC) jacket material
  • Gold plated contacts
  • Many end devices, including Rockwell Automation® hardened I/O products, use a different pin numbering convention for 4-pin mini connections than that used on physical media products
  • Both conventions have the same color code going to the same spot but they use a different pin numbering designation
  • Watertight connections (NEMA 4, 6P; IP 67)
