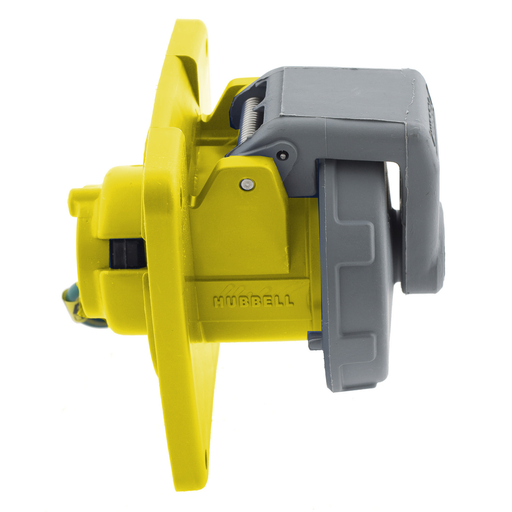

Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Hubbell HBL316R4W IEC 100 to 130 Volt 16 Amp 2-Pole 3-Wire Watertight Pin and Sleeve Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL316R4W | Codale Part # 3315241
$259.94/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female Receptacle, 16A 100-130V, 2-Pole 3- Wire Grounding, Terminal Screws, Yellow, Watertight

Technical Information

Amperage
16 Amp
Applications
High Ampacity Watertight Connections
Conductor Size
14-10 AWG
Current
16 Amp
Material
Thermoplastic
Mounting Type
Screw, External, Surface
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA StandardC22.2 No. 182.1,File E146032,IEC 60309-1 IEC 60309-2,UL
Style
Standard Service
Tc Connection
Pressure Plate
Type
Single Flanged
Voltage
100-130 Volt
Wattage
1760 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585403243
Color
Yellow
Environmental Conditions
Watertight
Product Series
HBL Heavy Duty
Product UPC
78358540324
Weight
0.9 lb

Dimensions

Height
4.06 Inch
Length
4.43 Inch
Width
4.370 in

Certifications and Compliance

Certifications
CSA Certified File LR280C For Plugs,CSA Certified File LR280C For Plugs,CSA Standard C22.2 No. 182.1,Connectors And Inlets,Connectors And Inlets And LR285C For Receptacle CSA Standard C22.2 No. 182.2,E146033 Plugs And Connectors,E146033 Plugs And Connectors,File E146032 Receptacles And Inlets,File E146032 Receptacles And Inlets,IEC,LR285C For Receptacles,UL Classified To IEC 309-1 And,UL Classified To IEC60309-1,UL Listed,UL Listed,UL Standard UL1682 & UL 1686C2,UL Standard UL1682 & UL1686C2
Country of Origin
USA
Features
  • Corrosion-resistant self-closing gasketed cover
  • Insulated non-metallic housing
  • Color coded housings for easy identification
  • Watertight
