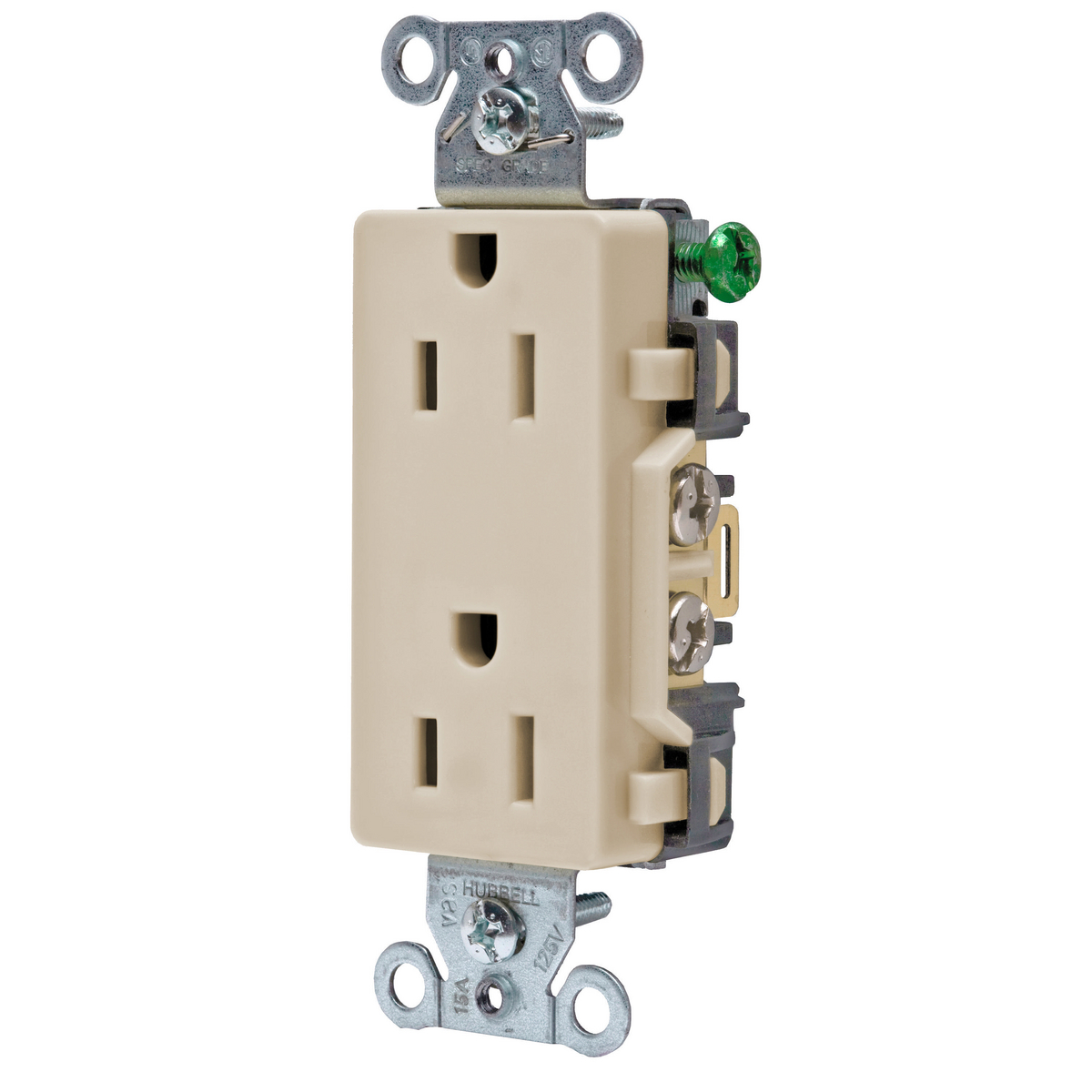

Hubbell DR15ALDECO Receptacle, COMM GRD, 15A 125V, 5-15R, AL

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # DR15AL | Codale Part # 3316751
$5.95/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Straight Blade Devices, Receptacles, Duplex, Decorator/Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Almond, Single Pack.

Technical Information

Amperage
15 Amp
Applications
For Commercial Applications
Base Material
Nylon
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Current
15 Amp
Face Material
Nylon
Grade
Commercial, Industrial
Horsepower
0.5 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Style
Style Line Decorator
Tc Connection
Back and Side Wired
Type
Decorator
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585127798
Color
Brown
Product UPC
78358512779
Weight
0.20 lb

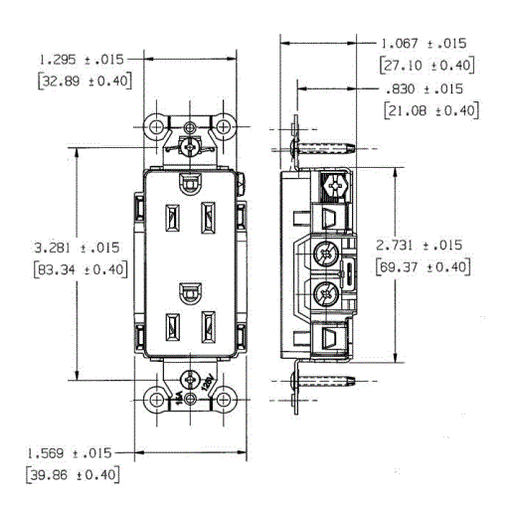

Dimensions

Height
3.28 Inch
Length
1.29 Inch
Width
1.06 in

Certifications and Compliance

Country of Origin
China
Features
  • Aesthetic Style Line® decorator design
  • Smooth face
  • Self Grounding
  • Triple wipe contacts
Industry Standard(s)
  • Certified to CSA, C22.2, No. 42
  • Fed. Spec. W-C-596
  • NEMA® WD-6 Compliant
  • UL Listed to UL498 File No. E2186
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 V-2
  • Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
