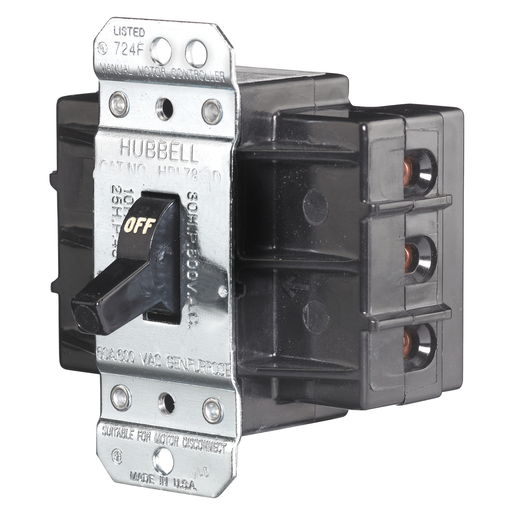

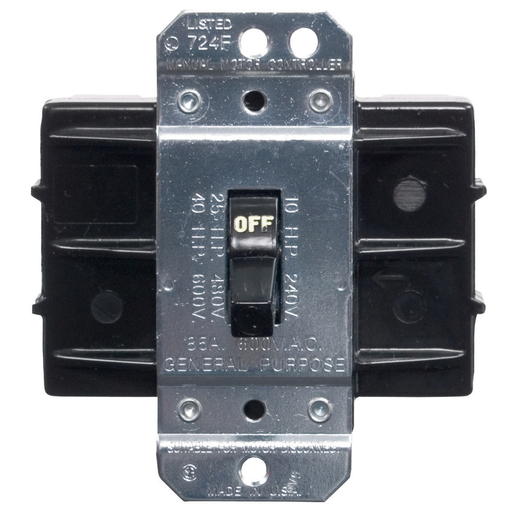

Product image for Hubbell HBL7863DDISCONNECT 60A 600V 3P DISC SW
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 5
Email

Hubbell HBL7863DDISCONNECT 60A 600V 3P DISC SW

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL7863D | Codale Part # 3317869
$331.25/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Control, Motor Disconnect, 3-Pole, 60A 600V, Back and Side Wired

Technical Information

Amperage
60 Amp
Applications
For Motor Starting without Overload Protection
Connection Type
Pressure Screw
Current
60 Amp
Enclosure Type
None
Horsepower
30 hp
Material
Stainless Steel
Number of Phases
3 Phase
Number of Poles
3 Pole
Operating Temperature
-40 degrees C
Power Rating
36,000 W
Size
Standard Sized Product
Standard
CSA-C22.2 No.14 Industrial Control File LR-46186,Industrial Control File #E70402,UL 508
Tc Connection
Pressure Screw Terminals
Temperature Rating
Minimum Continuous -40 Deg C without Impact
Type
Standard
Voltage
600 Volt
Wattage
36000 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Manual Motor Controllers

General Product Info

12-Digit UPC
783585202907
Product Series
Standard Toggle
Product UPC
78358520290
Weight
0.9 lb

Dimensions

Height
3.178 Inch
Length
3.798 Inch
Width
3.4 in

Certifications and Compliance

Country of Origin
USA
Features
  • Front and back wiring with steel screws and copper terminals
  • Recessed wiring wells for finger safe environments
  • Thermoset body withstands high temperatures
  • Standard Product
