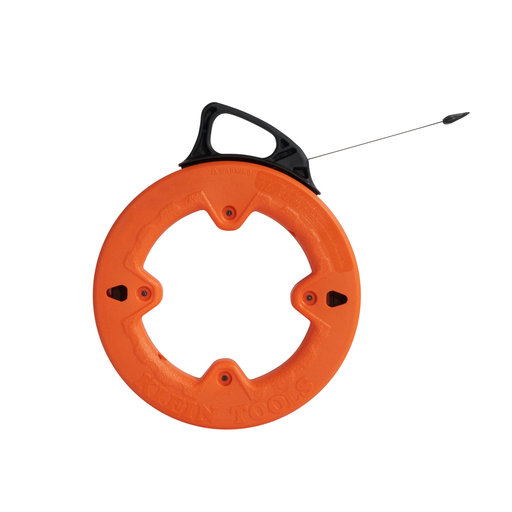

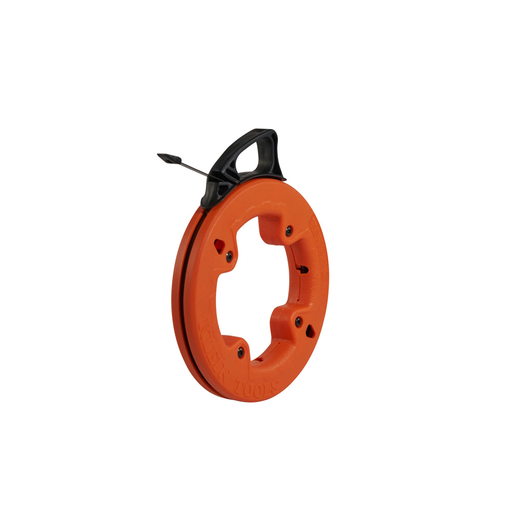

Klein 56005 25' Wide Steel Fish Tape

Manufacturer: Klein Tools | Catalog # 56005 | Codale Part # 3318201
$14.97/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet

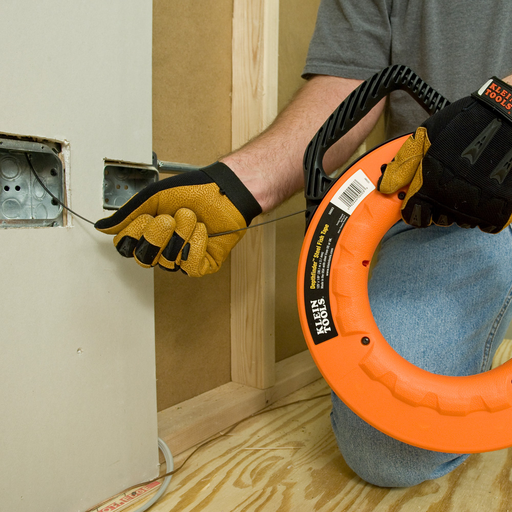

The Klein Tools 25-foot (7.5 m) steel fish tape is great for short wire runs under carpeting, through insulation or over suspended ceilings. The tape features a flat, plastic slotted tip that resists snagging and easily accepts wire. It also features Klein's exclusive descending laser-etched markings. Marked at 1-foot (0.3 m) increments, this fish tape helps measure the depth of conduit runs and lets you determine the amount of tape left to pay out.

Technical Information

Applications
For Long Runs and are Great for Heavy Duty Wire Pulls
Material
Steel
Type
Steel Fish Tapes
Wire Size
1/4 x 0.03 in

Manufacturer Information

Brand
Klein Tools, Inc.

General Product Info

12-Digit UPC
926445600578
Product UPC
09264456005
Weight
1.100 lb

Dimensions

Diameter
7 Inch
Length
25 Foot
Width
0.25 in

Certifications & Compliance

Prop 65 Warning
WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.

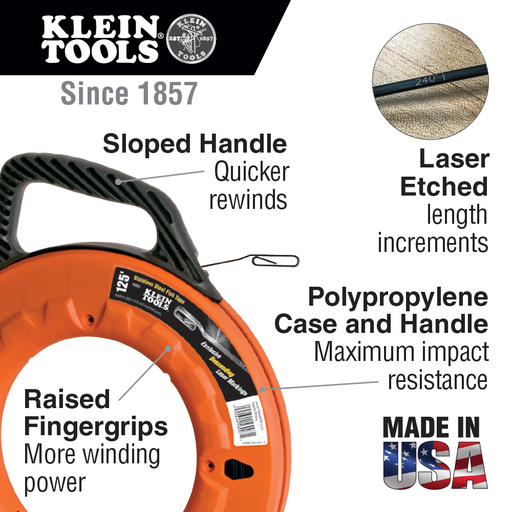

Features
  • Tempered, 1/4-Inch high quality steel tape keeps its stability as it glides between surfaces for effective pushing and pulling of wire under carpets, through insulated walls and over suspended ceilings
  • 25-foot (7.62 m) length is perfect for short wire runs associated with light commercial, residential and voice-data-video-audio installations
  • No-snag plastic tip
  • High strength spring steel fish tapes are stiff for long runs and are great for heavy duty wire pulls
  • Descending laser etched markings in 1-foot (0.3 m) increments allow you to more accurately measure the length of conduit runs and determine the amount of tape left to pay out
  • Polypropylene case and handle offer the maximum in impact resistance
  • Raised fingergrips transfer 100-percent of the winding power from your hand and fingers
  • Full grip style handle gives you a firm, steady grip as you pull tape from the case
  • Patents: D574,277; 8,212,178; 8,168,921; 8,164,025. Other patents pending
  • Great for running under carpeting or through insulation where penetrating strength is needed
Warnings
  • Wear approved eye protection when feeding, pulling or rewinding fish tape.
  • Do NOT use any fish tape on or near live circuits. Use extreme caution when working near any electrical equipment.
  • Use a safe work position to avoid loss of balance when using fish tape.
  • Never remove screws while fish tape is coiled inside reel.
