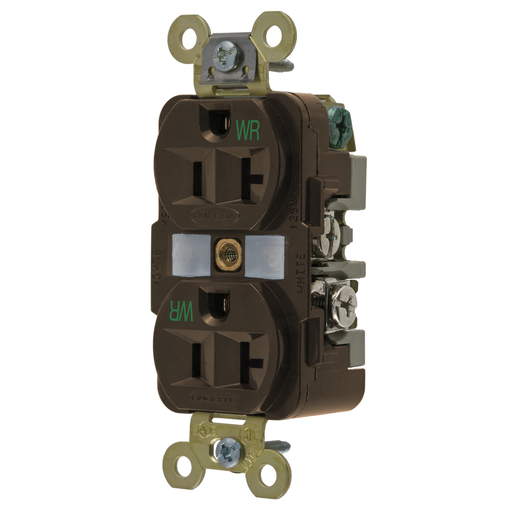

Hubbell HBL5362WR WR Receptacle, DUP, SB, HD SPEC, 20A 125V, BR

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5362WR | Codale Part # 3319090
$21.82/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Weather-Resistant Duplex, Industrial Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Brown, Single Pack.

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Industrial
Grounding
Grounding
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,E2186,UL
Style
Finder Groove Face
Tc Connection
Back & Side Wired
Type
Extra Heavy Duty
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12-10 in

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585320557
Color
Brown
Environmental Conditions
Weather-Resistant
Product Series
Extra Heavy Duty
Product UPC
78358532055
Weight
0.25 lb

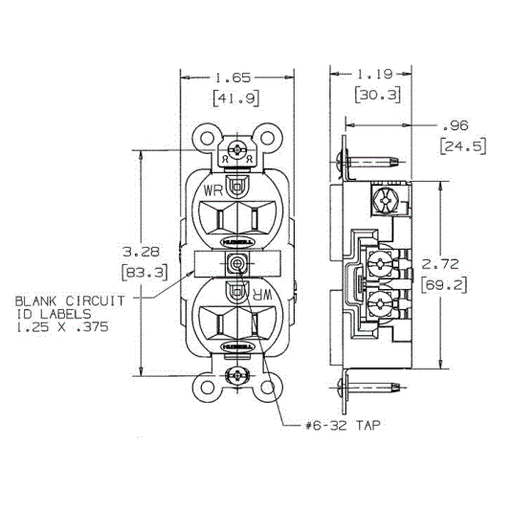

Dimensions

Height
1.19 Inch
Length
3.28 Inch
Width
1.65 in

Certifications and Compliance

Country of Origin
USA
Features
  • Weather-resistance complies with national electrical code requirements
  • Finder Groove Face
  • One-piece brass integral ground strap
  • Deep body design with circuit ID face
  • Weather Resistant- Self Grounding
