CRSH AP20467 200A 3W4P ARK PLG 1.37

Manufacturer: Eaton Crouse-Hinds | Catalog # AP20467 | Codale Part # 3319518
$3,268.26/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

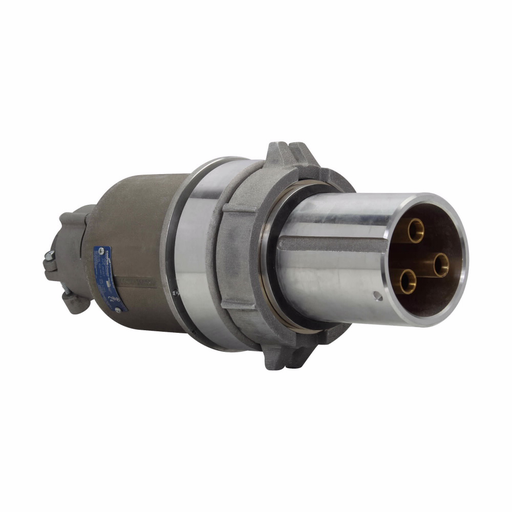

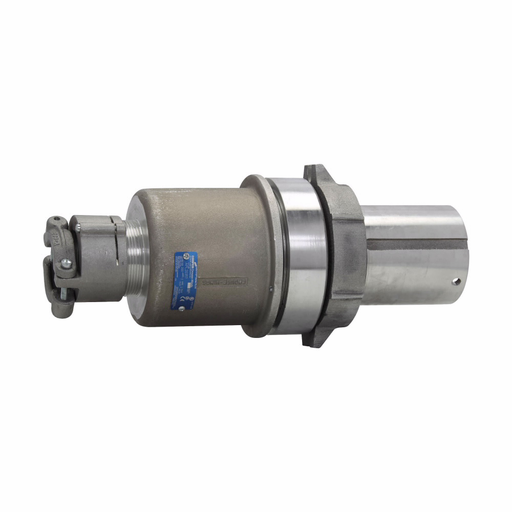

Eaton Crouse-Hinds series Arktite AP plug, 200A, 1.375-1.875", Three-wire, four-pole, 50-400 Hz, Style 2, Copper-free aluminum, Crimp/solder, 600 Vac/250 Vdc, 0.56" max

Technical Information

Amperage
200 Amp
Applications
Motor Generator Sets, Compressors, Heating and Cooling Units, Welders, Conveyors, Lighting Systems
Conductor Size
1-4/0 AWG/1-3/0 AWG
Connection Type
Crimp/Solder
Cord Range
1.375 - 1.875 in
Cord Type
1.375 To 1.875 In Diameter
Frequency
50-400 Hz
Material
Aluminum
Number of Poles
4 Pole
Size
6-3/4 In Diameter X 14-3/4 In Length
Standard
UL 514,CSA C22.2,UL 1010,UL 1682
Tc Connection
Crimp/Solder
Type
Pin and Sleeve, Mating
Voltage
250 Volt
Wire Size
1-4/0 AWG (Building), 1-3/0 AWG (Extra Flex)

Manufacturer Information

Brand
Crouse-Hinds
Sub Brand
Arktite

General Product Info

12-Digit UPC
782274039909
Product UPC
78227403990
Weight
12.25 lb

Dimensions

Height
6-3/4 Inch
Length
14-3/4 Inch
Width
6.75 in
