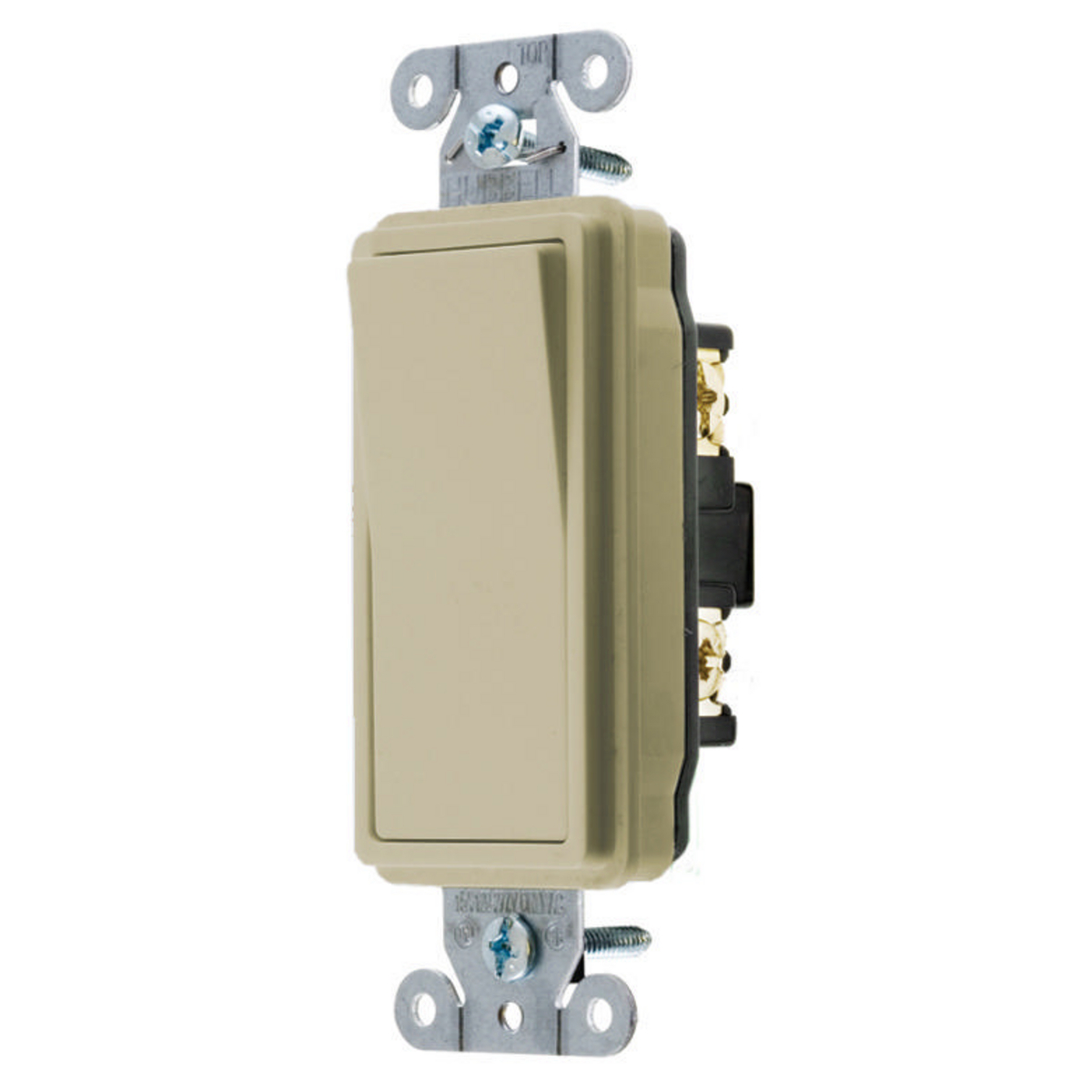

Product image for Hubbell DS220I SWITCH, DECO SER, DP, 20A 120/277V, IV
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell DS220I SWITCH, DECO SER, DP, 20A 120/277V, IV

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # DS220I | Codale Part # 3320042
$12.69/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Control, Decorator Switch, Specification Grade, Double Pole, 20A 120/277V AC, Back and Side Wired, Ivory

Technical Information

Action
Positive Snap
Actuator
Rocker
Amperage
20 Amp
Applications
Commercial Heavy Duty
Conductor Size
14-10 AWG
Contact Configuration
2 Position
Contact Rating
Per UL 20
Current
20 Amp
Enclosure
None
Indicator
None
Material
Thermoplastic
Number of Poles
2-2 Pole
Operating Cycles
50k
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
UL
Style
Double Pole
Tc Connection
Terminal Screw
Type
General Purpose Switches
Voltage
120-277 Volt
Wattage
5540 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
AC Decorator Switches

General Product Info

12-Digit UPC
783585151342
Color
Ivory
Environmental Conditions
Indoor Dry unless protected by additional means
Product Series
General Purpose
Product UPC
78358515134
Weight
0.2 lb

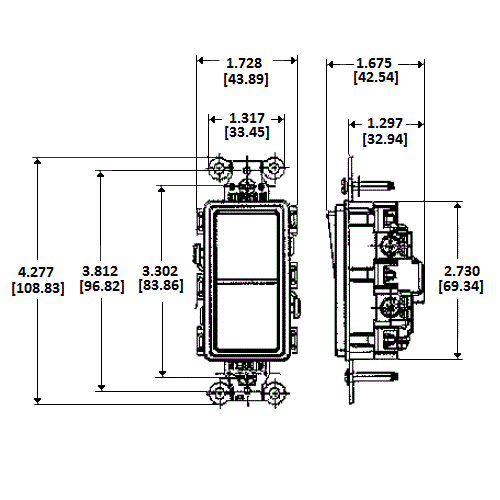

Dimensions

Height
1.67 Inch
Length
4.28 Inch
Width
1.73 in

Certifications and Compliance

Country of Origin
China
Features
  • Thread cleaning captive mounting screw
  • Steel, zinc plated bridge is corrosion resistant
  • Automatic self-grounding staple
