Product image for ICC IC1078F5BK BLACK CAT5e HD MODULAR JACK
Image thumbnail 0
Image thumbnail 1
Email

ICC IC1078F5BK BLACK CAT5e HD MODULAR JACK

Manufacturer: ICC Premise Wiring Products | Catalog # IC1078F5BK | Codale Part # 3323097
$7.72/ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet

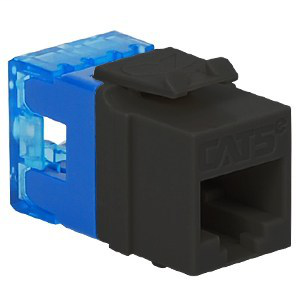

Category 5e High Density (HD) modular jacks, RJ-45 keystone jacks, is 8-position 8-conductor (8P8C) and is designed with a smaller rear footprint maximizing space utilization in confined work areas. It is engineered to provide superior performance and reliability, supporting up to Gigabit Ethernet applications. The advanced printed circuit board design is tuned to provide optimum signal quality with maximum headroom, allowing it to exceed TIA/EIA Category 5e performance standards.

Technical Information

Connection Type
8P8C,Insulation Displacement Connector (IDC); Accepts 22-24 AWG Solid Wire
Current
1.5 Amp
Performance Level
CAT5e

Manufacturer Information

Brand
ICC Compliance Center, Inc.

General Product Info

12-Digit UPC
633758018043
Color
Black
Housing Material
PC, UL 94V-0
Product Type
Keystone Jacks
Product UPC
63375801804
Weight
0.0500 lb

Certifications and Compliance

Country of Origin
Taiwan
Features
  • CAT5e rated connectors provide excellent performance for data networks.
  • PCB technology provides maximum performance and superior signal quality.
  • Enhanced crosstalk cancellation reduces return loss and improves performance.
  • Rejecting noise and unwanted signals.
  • Exceeds Category 5e industry performance requirements.
  • Terminate with 110 punch down tool.
  • Designed with rear split back 110 IDC reducing termination time.
  • Reduced rear footprint allows for greater connectivity density.
  • Provides for more port configurations in a smaller area.
  • Includes an integrated TIA-568A/B color wiring diagram.
  • Backward compatible with all lower rated category components.
  • Works with all Work Area Outlets faceplates, inserts, surface mount boxes.
  • For use with Category 5e patch cords.
  • Installation instructions included.
  • Exceeds ANSI/TIA-568-C requirements for permanent performances.
  • UL 1863 Compliant.
  • Transmission performance exceeds Category 5e connecting hardware requirements specified in ANSI/TIA-568-C.2 when used with compatible horizontal cable
