Hubbell HBL45235 Locking Connector, VARILOAD, 4P5W, 30A 600V, B-PIN

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL45235 | Codale Part # 3323250
$815.77/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Variload®, Female Connector Body, 30A 250V DC/600V AC, 50 - 400 Hz 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal, Black Non Metallic Body, Unique Center Pin

Technical Information

Amperage
30 Amp
Applications
Heavy Duty Industrial
Conductor Size
12-8 AWG
Current
30 Amp
Grounding
Grounding
Material
Composite
Mounting Type
Cord
Number of Conductors
5-Wire Grounding
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,UL 498
Tc Connection
Pressure Screw Terminal
Temperature Rating
-40 to 75 degrees C without Impact, -25 to 75 degrees C with Impact
Type
Unique Center Pin
Voltage
250 Volt
Wire Count
5
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Variload®

General Product Info

12-Digit UPC
783585236551
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358523655
Weight
0.45 lb

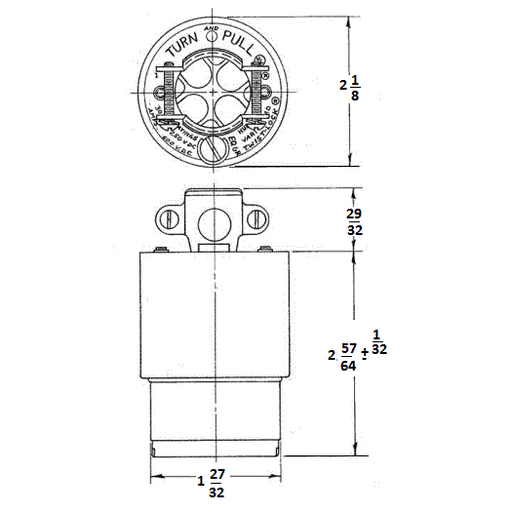

Dimensions

Height
3.79 Inch
Length
2.13 Inch
Width
2.13 in

Certifications and Compliance

Country of Origin
USA
Features
  • Heat resistant thermoset construction
  • Non-interchangable center pin configuration to be designated to different circuits
  • Unique Center Pin
