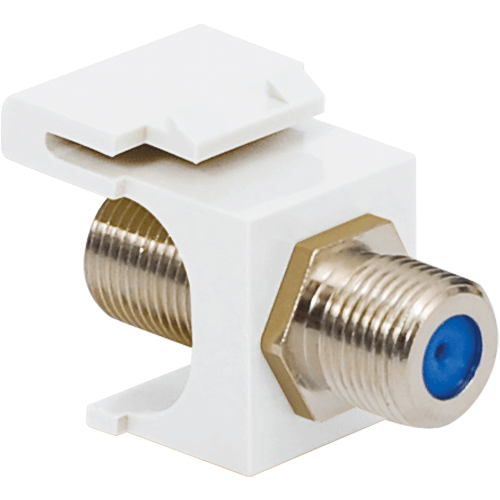

Product image for ICC IC107B9FWH MODULE F-TYPE NICKEL PLATED 3GHZ WHITE
Image thumbnail 0
Image thumbnail 1
Email

ICC IC107B9FWH MODULE F-TYPE NICKEL PLATED 3GHZ WHITE

Manufacturer: ICC Premise Wiring Products | Catalog # IC107B9FWH | Codale Part # 3323674
$6.28/ea
ea
Log in or register to view your price, purchase history, and more!
661 available

For Delivery

Not in local stock *
Check your local branch
The F-Type female to female modular jacks is ideal for several types of media including: Audio, Video, Cable, or Antenna Input. These high-performance modular jacks provide a clean connection point for wired electronics to wall outlets allowing cables to be hidden within the walls or cabinetry. They provide superior signal quality with minimal noise for today.s video and audio systems. They are fully compatible with ICC.s modular wall plates and multi-media panels.

Technical Information

Connection Type
F-Type
Material
Bronze With Nickle Plated
Performance Level
Video

Manufacturer Information

Brand
ICC Compliance Center, Inc.

General Product Info

12-Digit UPC
633758025140
Color
Almond,Black,Ivory,White,White
Housing Material
ABS, UL 94V-0
Product Type
A/V Inserts
Product UPC
63375802514
Weight
0.0200 lb

Certifications and Compliance

Country of Origin
China
Features
  • Designed with 3 GHz bandwidth for audio and video applications.
  • Rear threaded F-Type connectors for secure in-wall connections with both RG6 and RG59 coaxial cables.
  • Provides a clean and neat appearance installation.
  • Works with all Work Area Outlets faceplates, inserts, surface mount boxes.
  • UL listed.
  • Holding Force > 80 grams
  • Return Loss of -20 dB max
  • Frequency Range 1.4 3.0 GHz
  • Contact Resistance < 10 mohms
  • Character Impedance Rated75 ohm
  • Insulation Resistance > 10 mohms
