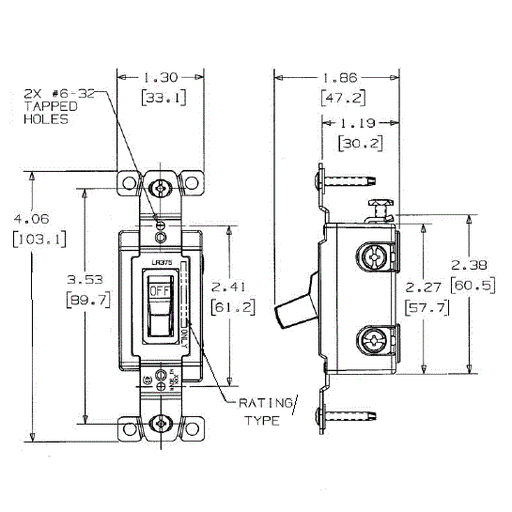

Image thumbnail 2
Image thumbnail 3
Email

HWDK HBL18223ICN 3 WAY TOG, IND GRD

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL18223ICN | Codale Part # 3324153
$54.17/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Switches and Lighting Controls, Industrial Grade, Toggle Switches, General Purpose AC, Three Way, 20A 347V AC, Terminal Screws, Ivory

Technical Information

Action
Positive Snap
Actuator
Toggle, Rocker/Button
Amperage
20 Amp
Applications
Heavy Duty Industrial
Conductor Size
14-10 AWG
Contact Configuration
Two Position
Contact Rating
Per UL 20
Current
20 Amp
Enclosure
None
Grade
Industrial
Material
Thermoplastic
Number of Poles
1-1 Pole
Operating Cycles
50000
Operating Temperature
-40 degrees C
Size
Standard Sized
Style
Three Way
Tc Connection
Back and Side Wired
Type
General Purpose, 2-Position, 3-Way, Heavy Duty, Standard
Voltage
347 Volt
Wattage
5205 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585924786
Color
Ivory
Environmental Conditions
Indoor Dry unless protected by additional means
Product Series
Extra Heavy Duty
Product UPC
78358592478
Weight
0.2 lb

Dimensions

Height
1.86 Inch
Length
4.06 Inch
Width
1.3 in

Certifications and Compliance

Country of Origin
China
Features
  • Large brass binding head screws with deep slots
  • Abuse resistant nylon toggle
  • Strip gauge for accurate wiring
