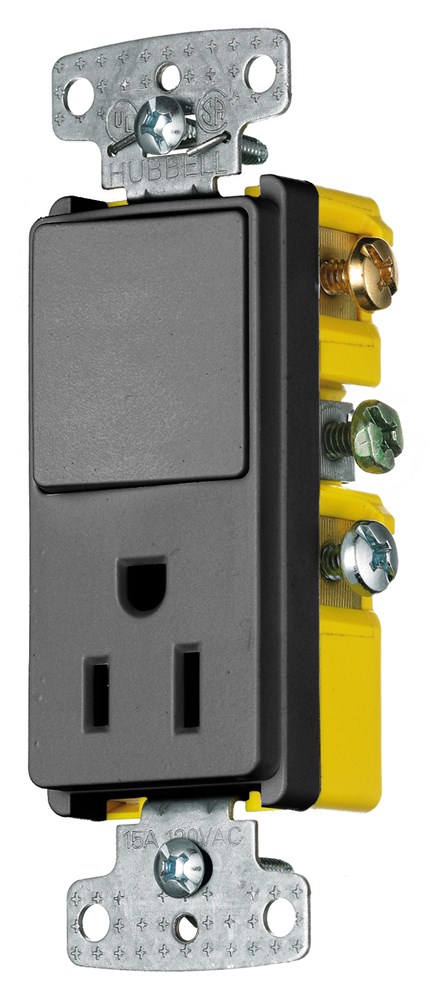

Product image for HCI RCD308BK COMBO, 15A 3W RKR, 15A
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

HCI RCD308BK COMBO, 15A 3W RKR, 15A

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # RCD308BK | Codale Part # 3324485
$44.50/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Installation / Instruction Manual
Switches and Lighting Controls, Combination Devices, Residential Grade, Decorator Series, 1) Three Way Rocker, 1) Single Receptacle, 15A 120V AC, Side Wired, Black

Technical Information

Actuator
Rocker
Amperage
15 Amp
Applications
Residential
Contact Configuration
Two Position
Contact Rating
15A
Current
15 Amp
Number of Poles
1 Pole
Operating Cycles
30k
Operating Temperature
Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
Size
Standard Size
Tc Connection
Side Wired
Type
Decorator Switch and Receptacle Combo Devices
Voltage
125 Volt
Wattage
1875 Watt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Trade Select

General Product Info

12-Digit UPC
883778110597
Product UPC
88377811059
Weight
0.1000 lb

Dimensions

Height
1.2 Inch
Length
4.2 Inch
Width
1.300 in

Certifications and Compliance

Country of Origin
China
Features
  • Smooth, quiet rocker
  • Standard Product
  • Low profile, less than 1 inch deep
  • Self-grounding feature is standard
Performance
  • Electrical - Dielectric voltage - Withstands 1,500V AC minimum for 1 minute
  • Electrical - Endurance - 30,000 cycles minimum
  • Electrical - Max. working voltage - 120V
  • Electrical - Overload - 1.5 times rating
  • Environmental - Flammability - UL V0
  • Environmental - Operating temperatures - Maximum continuous 60°C
  • minimum -20°C (without impact)
  • Mechanical - Terminal accommodation - Back and side wire: #14 AWG min. - #12 AWG max. solid and stranded copper wire only
  • push wire: #14 AWG solid copper wire only
Industry Standard(s)
  • CSA Certified
  • UL Listed E3896
