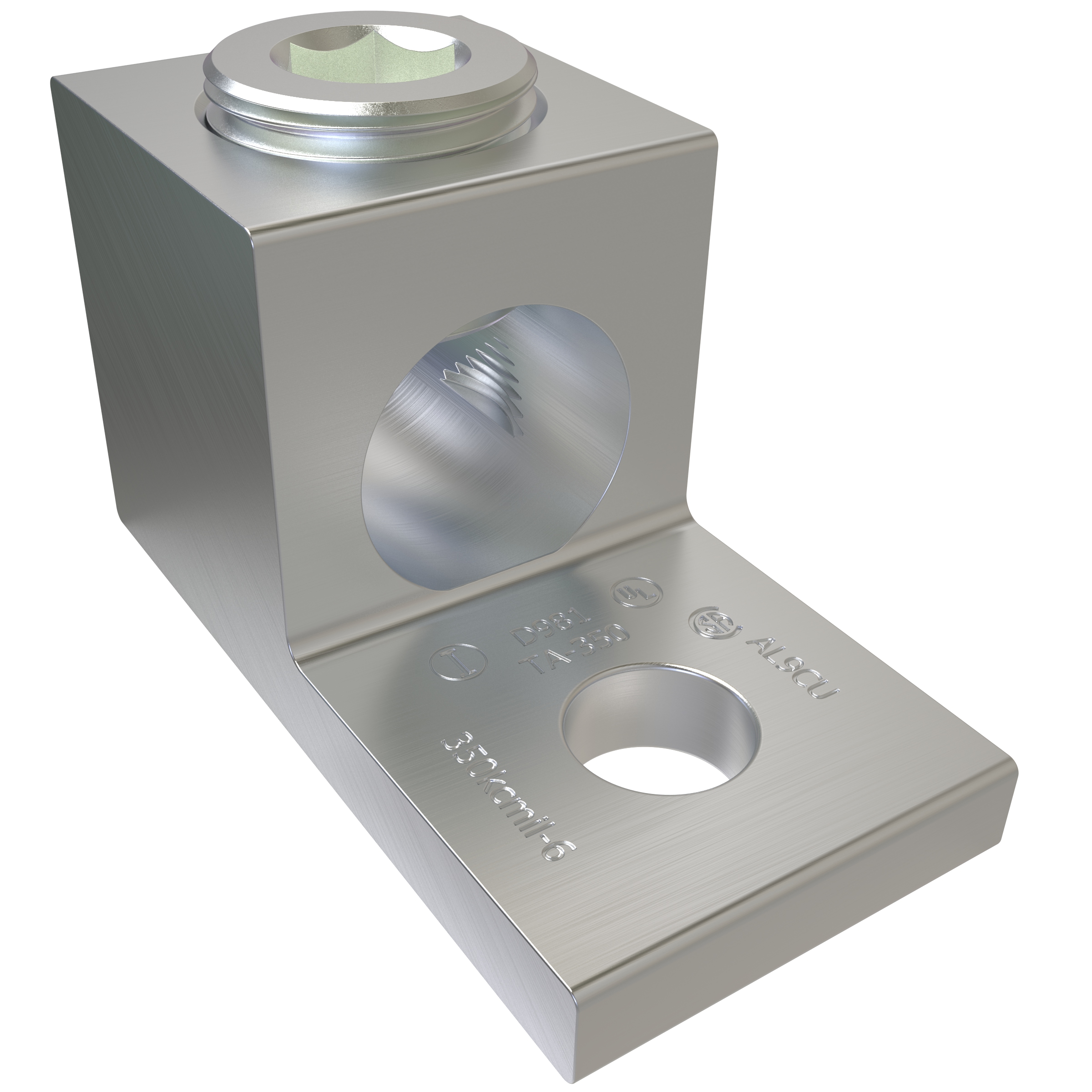

Product image for Ilsco TA-350 Aluminum Mechanical Lug, Conductor Range 350-6, 1 Port, 1 Hole, 3/8in Bolt Size, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco TA-350 Aluminum Mechanical Lug, Conductor Range 350-6, 1 Port, 1 Hole, 3/8in Bolt Size, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # TA-350 | Codale Part # 3326075
$10.61/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Mechanical Lug, One Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size 3/8 in, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 350 kcmil - 6 Str, 1 conductors, 1 ports/wireways, Drive Type Main 3/8 Internal Hex, rated for 35 kV, primary color Silver, 1 poles,

Technical Information

Applications
For Terminating Connector
Bolt Size
3/8 in
Conductor Material
Aluminum,Copper
Conductor Size
6 AWG-300 kcmil
Conductor Type
Aluminum and Copper
Connection Type
Mechanical
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
13/32 in
Number of Conductors
1
Number of Holes
1 Hole
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
TA:1 CONDUCTOR AL/CU
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669889932
Color
Silver
Finish
Electro-Tin Plated
Product UPC
78366988993
Weight
0.163 lb

Dimensions

Height
1-1/4 Inch
Length
2-1/4 Inch
Width
1.125 in
