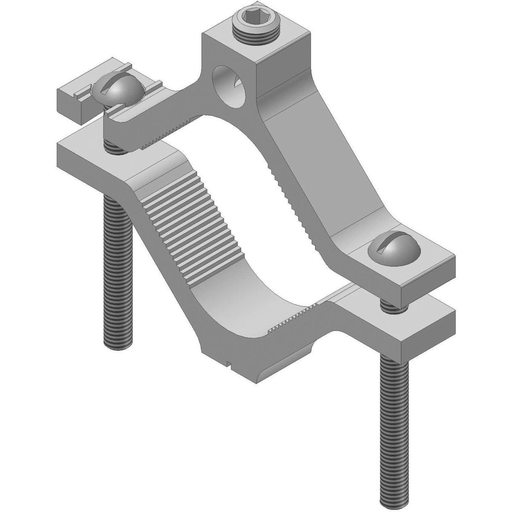

Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Burndy GC15A Mechanical Grounding Connector, Cable to Water Pipe, 14 AWG - 1/0 AWG, 1/2" - 1" Pipe, Al/Cu Rated

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # GC15A | Codale Part # 3326153
$4.27/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
Dual Rated Ground Clamps, Cable to Water Pipe, 1/0-14 AWG, 1/2-3/4-1 pipe, Al/Cu Rated. CMC® Dual Rated Ground Clamps are manufactured from high strength 6061-T6 aluminum alloy to insure both maximum strength and conductivity. They are dual rated for both copper and aluminum conductors and are electro tin plated to provide low contact resistance and protection against corrosion. They effectively ground copper or aluminum conductors to copper water pipe, galvanized pipe, or steel conduit.

Technical Information

Applications
For Use With Either Copper Or Aluminum Conductors To Copper Water Pipe, Galvanized Pipe Or Steel Conduit
Conductor Size
1 AWG
Material
Aluminum
Max Voltage
600 V
Plated?
Yes
Plating Type
Tin
Tap Size
1/2- 1 inch IPS pipe, 3/8 - 1 inch rod
Temperature Rating
-0.4
Type
GC-A, Dual Rated
Voltage
600 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810240007
Finish
Tin Plated

Dimensions

Height
2-1/4 Inch
Hole Size
0.40 in
Length
0.69 Inch
Overall Length
57 mm
Width
0.69 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Features
  • CMC® dual rated aluminum ground clamps are manufactured from high strength 6061-T6 aluminum alloy to ensure both maximum strength and conductivity.
  • Electro tin plated to provide low contact resistance and protection from corrosion. They also cover a range from 1/2 to 4 pipe with a ground wire range covering 250 kcmil to #14 AWG
  • Effectively ground copper or aluminum conductors to copper pipe, galvanized pipe, or steel conduit
