Hubbell DS120IL SWITCH, DECO SER, SP, 20A 120/277V, ILIV

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # DS120IL | Codale Part # 3329900
$51.12/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Control, Decorator Switch Specification Grade, Rocker Switches, General Purpose AC, Illuminated Single Pole, 20A 120/277V AC, Back and Side Wired, Ivory

Technical Information

Action
Positive Snap
Actuator
Rocker
Amperage
20 Amp
Applications
For Commercial Use
Conductor Size
14-10 AWG
Contact Configuration
2 Position
Contact Rating
Per UL 20
Current
20 Amp
Enclosure
None
Indicator
Light On with Load Off
Material
Thermoplastic
Number of Poles
1 Pole
Number of Positions
2
Operating Cycles
50000
Operating Temperature
-40 degrees C
Power Rating
5540 W
Size
Standard Sized
Standard
UL
Style
Single Pole
Switch Type
Single Pole
Tc Connection
Terminal Screw
Temperature Rating
-40 degrees C Minimum without Impact, 75 degrees C Maximum
Terminal Type
Screw
Type
Standard, General Purpose, LED
Voltage
120-277 Volt
Wattage
5540 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Decorator Switches

General Product Info

12-Digit UPC
783585154565
Color
Ivory
Environmental Conditions
Indoor Dry unless protected by additional means
Product Series
Illuminated
Product UPC
78358515456
Weight
0.2 lb

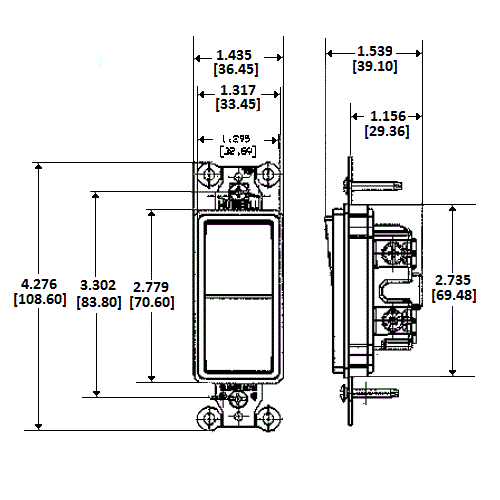

Dimensions

Height
1.54 Inch
Length
4.28 Inch
Width
1.43 in

Certifications and Compliance

Country of Origin
China
Features
  • Thread cleaning captive mounting screw
  • Steel, zinc plated bridge is corrosion resistant
  • Automatic self-grounding staple
