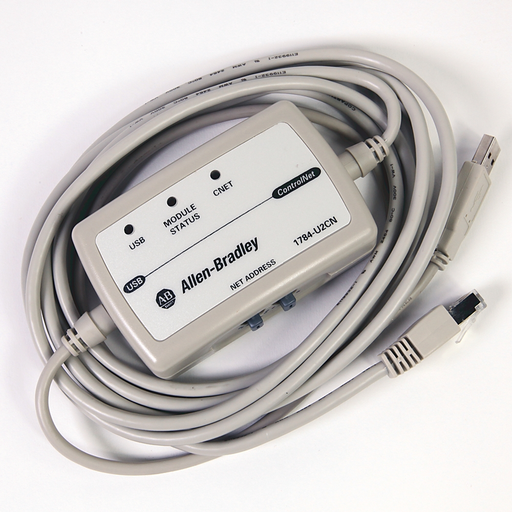

Allen-Bradley 1784-U2CN CNET to PC USB Port Interface Cable

Manufacturer: Allen Bradley / Rockwell | Catalog # 1784-U2CN | Codale Part # 3330229
$3,581.02/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
CNet to PC USB Port Interface Cable

Technical Information

Applications
ControlNet
Number of Ports
1
Power Supply
USB
Standard
C-TICK,CE,CUL,KC,UL
Type
1-Port

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
ControlNet

General Product Info

12-Digit UPC
612598524839
Product UPC
61259852483
Weight
0.6800 lb
Features
  • Helps simplify large network commissioning through diagnostic parameters such as Power Supply Voltage, H1 Bus Voltage (A & B bus), H1 Bus Current (A & B bus), and Unit Internal Temperature
  • Provides seamless RSLogix5000™ integration through Add-On Profiles, which automatically identifies field devices and configures them to their default settings
  • Supports EtherNet/IP Media redundancy
  • Supports FDT/DTM Technology, allowing direct access to field device diagnostics and parameters using an FDT frame, such as FactoryTalk® AssetCentre
  • Links an EtherNet/IP™ network to a single Profibus-PA segment
  • Use a repeater adapter to supply a maximum of 1.6 A @ 5V DC of current to power the repeater modules
  • Links an ControlNet™ network to a single Profibus-PA segment
  • Supports as many as 24 PA field devices
  • Links an EtherNet/IP™ network to a single H1 segment
  • Simplifies commissioning through onboard advanced diagnostics, including a node-specific PA bus oscilloscope trace that can be viewed within the RSLogix5000 Add-On Profile
  • Includes 200 micron cable
  • Use with the 1786-RPFS repeater
  • Operates as a true PA master without requiring a DP network, DP master, coupler device, or external power conditioner
  • Protects the integrity of a FOUNDATION Fieldbus H1 or Profibus-PA segment by automatically isolating faulty drops and restoring power when faults are corrected
  • Helps simplify large network commissioning through diagnostic parameters such as Power Supply Voltage, PA Bus Voltage (A & B bus), PA Bus Current (A & B bus), and Unit Internal Temperature
  • Provides trunk open-circuit and short-circuit monitoring and reroutes trunk connections for extended availability
  • Supports Master Device redundancy
  • Self-contained, panel, or DIN-rail mountable device
  • Provides all basic diagnostic information in the input assembly
  • Provides seamless RSLogix 5000™ environment integration through Add-On Profiles, which automatically identifies field devices and configures them to their default settings
  • Simplifies commissioning through onboard advanced diagnostics, including a node-specific H1 bus oscilloscope trace that can be viewed within the RSLogix5000 Add-On Profile
  • Links a ControlNet™ network to a single H1 segment
  • Supports ControlNet Media redundancy
  • Supports multiple levels of device and media redundancy
  • Displays useful field bus diagnostic information via status LEDs
  • Connects and powers as many as 16 field devices, eliminating the need for external power conditioners
  • Contains the FOUNDATION Fieldbus Registered FF H1 Stack developed by Rockwell Automation®
