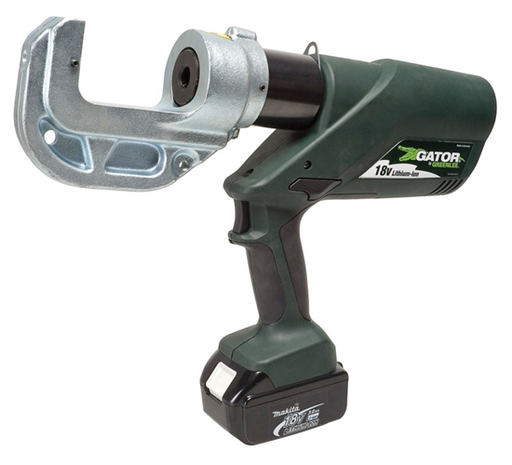

Greenlee EK1240KL11 12 Ton 1033 MCM ACSR Terminal Rotatable Head Lithium-Ion Battery Powered Crimping Tool

Manufacturer: Greenlee | Catalog # EK1240KL11 | Codale Part # 3331025
$15,770.96/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
12-Ton Battery-Powered Crimping Tool, Kearney head, 120 V Charger

Technical Information

Battery Type
18V Lithium-Ion
Crimping Force
24000 lb
Standard
C/US UL Listed
Type
Battery Powered

Manufacturer Information

Brand
Greenlee

General Product Info

12-Digit UPC
783310125662
Product UPC
78331012566
Weight
15.000 lb
Description
  • One trigger controls all tool functions
  • Forward handle position improves tool balance
  • LED light provides the operator with the battery charge and tool maintenance status
  • Three crimping head choices: EK1230L with 1.20 IN (30mm) opening uses Greenlee KC12, KA12 & KD12 crimping dies plus all industry \"U\" style crimping dies, EK1240L with 1.65 IN (42mm) opening uses Greenlee KC12, KA12 & KD12 crimping dies plus all industry \"U\" style crimping dies, EK1240KL uses Kearney PH2 style crimping dies
  • Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
  • Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
  • Tools automatically retract when the crimping cycle is complete
  • Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
  • Greenlee battery-powered crimping tools now use bio-degradable oil
  • Overmolded tacky grip areas make gripping the tool easier and more comfortable
  • Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
  • State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
  • Covered head models have two layers of PVC that total approximately 3/16 IN (4.8 mm) thick. The outer layer is black and the inner layer is red
  • Two-stage hydraulic system provides fast advance and power speeds, saving time
  • U.S. Patents #6,206,663 and #6,065,326
  • LED work light illuminates dark work areas
  • Crimping head rotates 350°
