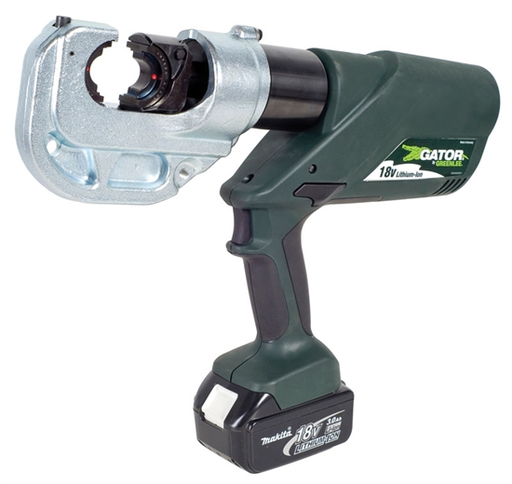

GREENLEE EK1240L120 12T 120V CRIMP TOOL

Manufacturer: Greenlee | Catalog # EK1240L120 | Codale Part # 3331096
$15,164.96/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
12-Ton Crimping Tool w/120 VAC Adapter

Technical Information

Battery Type
18V Lithium-Ion
Crimping Force
24000 lb
Standard
C/US UL Listed
Type
Battery Powered

Manufacturer Information

Brand
Greenlee

General Product Info

12-Digit UPC
783310102342
Product UPC
78331010234
Weight
15.000 lb

Dimensions

Overall Length
16-1/4 in
Description
  • One Trigger Controls All Tool Functions
  • Available With 120V, 12V or 230V Battery Charger Or With 120V or 230V Corded Adapter In Place Of Batteries And Charger
  • Three Crimping Head Choices: EK1230L With 1.20 IN (30mm) Opening Uses Greenlee KC12, KA12 And KD12 Crimping Dies Plus All Industry U Style Crimping Dies, EK1240L With 1.65IN (42mm) Opening Uses Greenlee KC12, KA12 And KD12 Crimping Dies Plus All Industry U Style Crimping Dies, EK1240KL uses Kearney PH2 Style Crimping Dies
  • Forward Handle Position Improves Tool Balance
  • Automatic Retraction Stop (ARS) Which Retracts The Ram Just Enough To Get Ready For The Next Cycle Saving Time And Energy
  • Intelligent Crimping System Technology Includes A Pressure Sensor That Monitors The Crimping Force Of Each Crimp and Provides The Operator A Visual And Audible Alert If The Force Is Below Specifications
  • Greenlee Battery-Powered Crimping Tools Now Use Bio-Degradable Oil
  • The Outer Layer Is Black And The Inner Layer Is RedU.S. Patents No 6, 206, 663 And 6, 065, 326
  • Over molded Tacky Grip Areas Make Gripping The Tool Easier And More Comfortable
  • State Of The Art 18V Lithium Ion (Li-ion) Battery Provides 70 PCT More Cycles Per Charge And Faster Cycle Times
  • LED Work Light Illuminates Dark Work Areas
  • Smart Chargers Control The Charging Current, Charging Voltage And Battery Temperature to Maximize Battery Life
  • Covered Head Models Have Two Layers Of PVC That Total Approximately 3/16 IN (4.8mm) Thick
  • Crimping Head Rotates 350 DEG
  • LED Light Provides The Operator With The Battery Charge And Tool Maintenance Status
  • Tools Automatically Retract When The Crimping Or Cutting Cycle Is Complete
  • Two-Stage Hydraulic System Provides Fast Advance And Power Speeds, Saving Time
