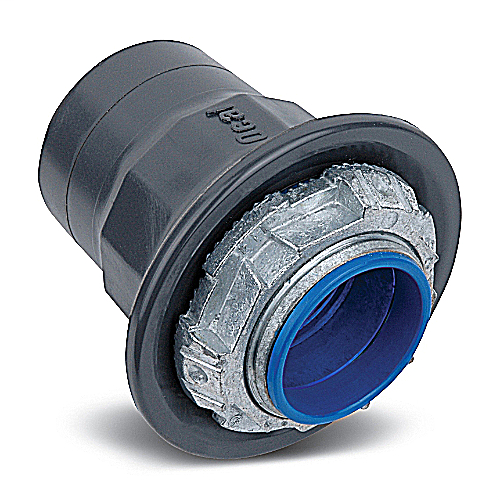

Ocal HUB11/2-G 1-1/2 Inch Ocal Dark Gray Hub Connector

Manufacturer: ABB Ocal | Catalog # HUB11/2-G | Codale Part # 3332090

$129.99/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Order by 5:00pm MT for delivery Monday
Not available for delivery*
Check your local branch
1 1/2 in. Dark Gray PVC Coated Hub Connector, Zinc with thermoplastic insulating throat, sealing ring-Nitrile BUNA N.

Technical Information

Applications
For Positively Bonding Conduit to Box or Enclosure
Material
PVC
Size
1-1/2 in
Temperature Rating
105 C
Trade Size
1-1/2 Inch
Type
Hub Connector

Manufacturer Information

Family Brand Name
Ocal
Sub Brand
Ocal

General Product Info

Color
Dark Gray
Finish
PVC Coated
Product UPC
70450838824
Codale Part No.
3332090
Color
Dark Gray
Finish
PVC Coated
Material
Zinc
Product Long Description
1 1/2 in. Dark Gray PVC Coated Hub Connector, Zinc with thermoplastic insulating throat, sealing ring-Nitrile BUNA N.
  • A minimum .040 in. (40 mil) PVC Coating is bonded to the exterior.
  • Hexagonal body and locknut design.
  • Innovative sealing ring and groove.
  • Coated with a nominal .002 in. (2 mil) blue urethane on the interior, before PVC Coating is applied.
  • Pressure sealing sleeves to protect the connection.
  • Insulated throat and sharper and deeper teeth.
  • Standard color is dark gray. Also available in white and light blue. Custom colors are also available upon request. Please contact Technical Services, 888-862-3289.
  • Dimensional values are of uncoated fittings.
