Ocal LB27-G 3/4 Inch Gray PVC Coated Iron Type LB Form7 Rigid Conduit Body Cover

Manufacturer: ABB Ocal | Catalog # LB27-G | Codale Part # 3332468

$99.99/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
11 available

For Delivery

Order by 5:00pm MT for delivery tomorrow
Not available for delivery*
Check your local branch
3/4 in. Dark Gray PVC Coated Type LB Form 7 Gray Iron Conduit Body and Cover.

Technical Information

Applications
Act as Pull Outlets for Conductors Being Installed
Blade Dimensions
5-1/4 in L x 1.65 in W x 2.4 in H x 60.96 mm D
Hub Size
3/4 in
Material
Iron
Size
3 in
Trade Size
3 Inch
Type
Form 7 Conduit Body

Manufacturer Information

Family Brand Name
Ocal
Sub Brand
Ocal

General Product Info

Color
Gray
Finish
PVC Coated
Product UPC
70450839016

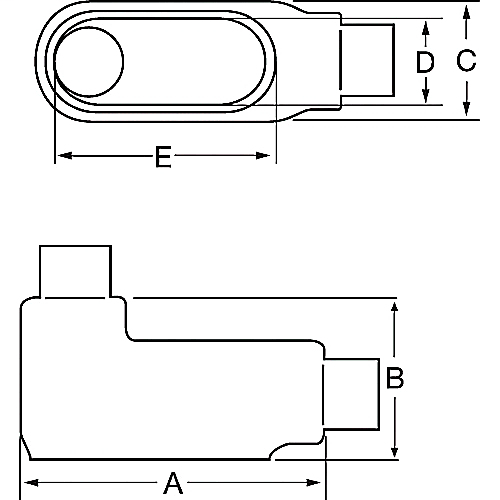

Dimensions

Height
2.4 Inch
Length
5-1/4 Inch
Width
1.65 in
Codale Part No.
3332468
Color
Dark Gray
Finish
PVC Coated
Material
Gray Iron
Product Long Description
3/4 in. Dark Gray PVC Coated Type LB Form 7 Gray Iron Conduit Body and Cover.
  • Provide for access to conductors for maintenance and future system changes
  • Provide taps for branch conduit runs
  • Connect conduit sections
  • Make 90° bends in conduit runs
  • Provide openings for making splices and taps in conductors
  • Act as pull outlets for conductors being installed
  • CSA
  • UL
  • The conduit body and cover are double coated with a nominal .002 in. blue urethane on both the interior and exterior, before PVC coating is applied
  • A minimum of .040 in. PVC coating is bonded to the exterior.
  • Ocal conduit bodies are shipped with a cover and encapsulated stainless steel screws.
  • Ocal pressure-sealing sleeves on all threaded hubs.
  • Bodies are designed with a flat back, allowing more cubic inch capacity. The flat back also keeps the body more stable during installation, requiring fewer conduit straps.
  • Covers are coated with a molded flange to seal the conduit body while the conduit body is molded with a flat surface on its opening to seal with the cover.
  • Available in dark gray, white and light blue. Custom colors are also available upon request. Please contact Technical Services-888-862-3289
  • Dimensional values are of uncoated conduit bodies.
