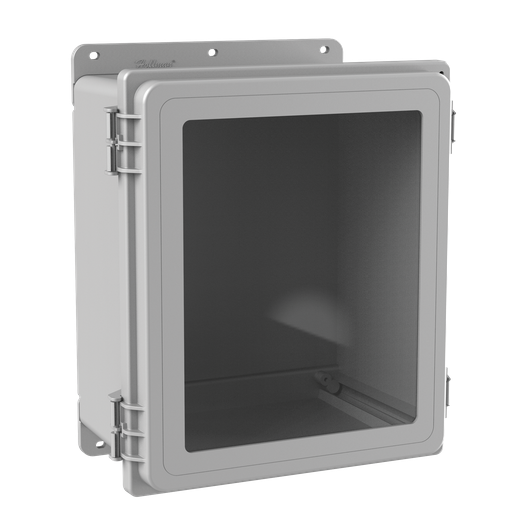

Product image for Hoffman A12106PHCW PolyPro Window Type 4X, 12.08" x 10.09" x 6.38", Polyester
Image thumbnail 0
Image thumbnail 1
Email

Hoffman A12106PHCW PolyPro Window Type 4X, 12.08" x 10.09" x 6.38", Polyester

Manufacturer: nVent Hoffman | Catalog # A12106PHCW | Codale Part # 3333365
$392.77/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
PolyPro polyester enclosures perform exceptionally well in applications where harsh chemicals, weather extremes and corrosive environments demand toughness from a lightweight enclosure. Providing excellent ultraviolet protection and a tight environmental seal, these versatile, feature-rich enclosures are also recyclable.

Technical Information

Applications
Providing Excellent Ultraviolet Protection and a Tight Environmental Seal, these Versatile, Feature-Rich Enclosures are also Recyclable
Color Coding
RAL 7035
Cover Type
Removable Snap-Hinge, Screw
IP Rating
66
Material
Polyester
Size
12.08x10.08x6.35 in
Type
Feed-Through, Hinged Cover, Straight Section

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
PolyPro

General Product Info

12-Digit UPC
783510170882
Color
Light Gray
Finish
Matte
Product UPC
78351017088
Weight
5.9 lb

Dimensions

Depth
6.35 Inch
Height
12.08 Inch
Length
13 Inch
Thickness
3.3 mm
Width
10.08 in
DISK UNSPSC
39121309
Features
  • Non-glass-filled polyester material offers superior UV resistance; eliminates fiberbloom associated with fiberglass
  • Provides excellent chemical resistance to a broad range of solvents, alkalis and acids
  • Resists cracking and provides excellent impact resistance
  • Lighter-weight than fiberglass
  • Recyclable
  • Easy, dustless in-field modifications using standard tools
  • Overlapping tongue-and-groove raised cover and gasket provide a secure Type 4X seal
  • Removable snap-hinge cover allows for easy access to cover and body for modifications
  • Molded layout grid on inside of body and solid covers assists with component mounting
  • Molded-in embosses for rear panel mounting
  • Optional cover screws included with all models
  • Internal rail system and adjustable panel blocks allow for panel height adjustment and installation of multiple panels
  • Scratch-resistant polycarbonate windows
  • Standard models include body and cover, two mounting feet, two latch assemblies with optional cover screwscrews and hardware (adjustable panel blocks and panels sold separately)
